No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|

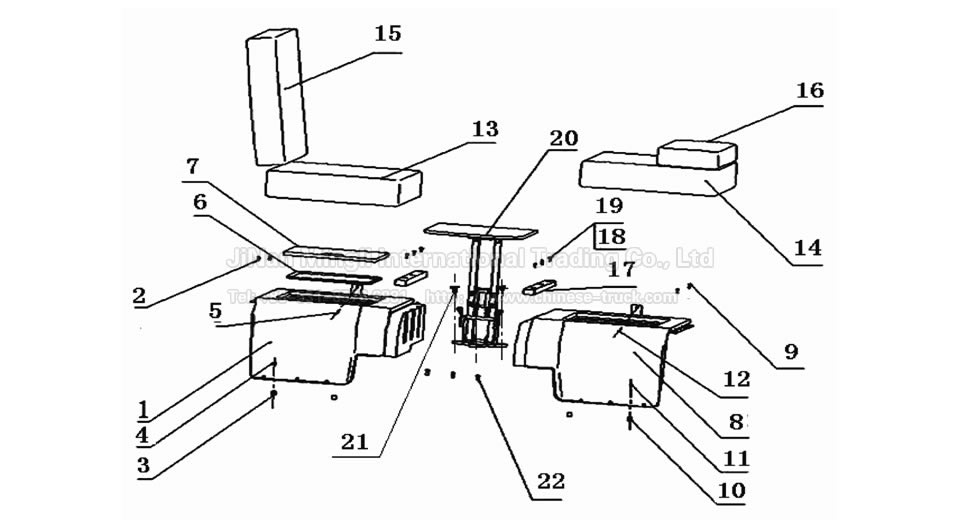

| 1 | WG1662570005 | 1 | Right toolbox | 右工具箱总成 | ||
| 2 | Q1460620 | 2 | Combination screw | 六角头螺栓、弹簧垫圈和平垫圈组合件 | ||
| 3 | AZ1662570052 | 2 | Sleeve | 套筒 | ||
| 4 | Q32006 | 2 | Nut | 六角法兰面螺母 | ||
| 5 | Q1460840 | 1 | Combination screw | 六角头螺栓、弹簧垫圈和平垫圈组合件 | ||
| 6 | WG1662570025 | 1 | Seal | 密封条 | ||
| 7 | AZ1662570008 | 1 | Board | 木板 | ||
| 8 | WG1662570006 | 1 | Left toolbox | 左工具箱总成（与右件对称） | ||
| 9 | Q1460620 | 2 | Combination screw | 六角头螺栓、弹簧垫圈和平垫圈组合件 | ||
| 10 | AZ1662570052 | 2 | Sleeve | 套筒 | ||
| 11 | Q32006 | 2 | Nut | 六角法兰面螺母 | ||
| 12 | Q1460840 | 1 | Combination screw | 六角头螺栓、弹簧垫圈和平垫圈组合件 | ||
| 13 | AZ1662570009 | 1 | Right soft mat | 右软垫 | ||
| 14 | AZ1662570017 | 1 | Left soft mat | 左软垫（与右件对称） | ||
| 15 | AZ1662570014 | 1 | Middle soft mat | 中软垫 | ||
| 16 | AZ1662570015 | 1 | Pillow | 枕头 | ||
| 17 | AZ1662570072 | 2 | Underprop | 工具箱支撑板 | ||
| 18 | Q2716322 | 6 | Screw | 十字槽盘头自攻螺钉 | ||
| 19 | Q40108 | 6 | Washer | 平垫圈 | ||
| 20 | AZ1662570101 | 1 | Table | 桌子装配总成 | ||
| 21 | Q1460840 | 3 | Combination screw | 六角头螺栓、弹簧垫圈和平垫圈组合件 | ||
| 22 | WG1664930002 | 3 | Combination screw | 堵盖 |
