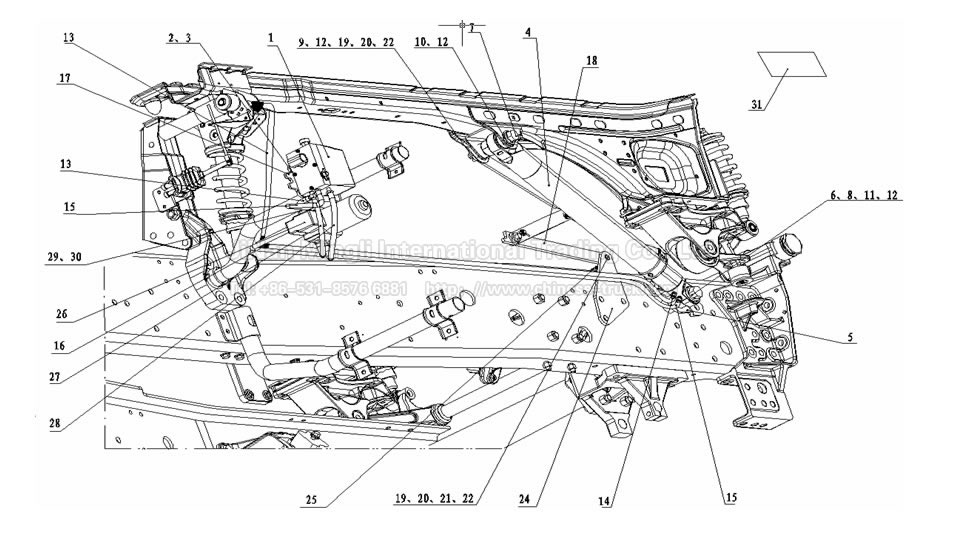

No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|
| 1 | WG9925821002 | 1 | Handpump | 高地板驾驶室举升油泵(电) | ||
| 2 | Q150B1020 | 2 | Screw | 六角头螺栓 | ||
| 3 | Q40310 | 2 | Spring washer | 弹簧垫圈 | ||
| 4 | WG9925820004 | 1 | Cylinder | 高地板驾驶室举升油缸 | ||
| 5 | AZ9925821005 | 1 | Cylinder bracket | 举升油缸下支架 | ||
| 6 | Q150B20140 | 1 | Screw | 六角头螺栓 | ||
| 7 | AZ9925820045 | 1 | Axletree | 油缸上支承轴 | ||
| 8 | Q33420 | 1 | Nut | I型全金属六角锁紧螺母 | ||
| 9 | Q351B20 | 1 | Nut | 六角薄螺母 | ||
| 10 | Q40320 | 1 | Spring washer | 弹簧垫圈 | ||
| 11 | Q40220 | 1 | Washer | 大垫圈 | ||
| 12 | Q40120 | 4 | Washer | 平垫圈 | ||
| 13 | WG9925820007 | 2 | Tube | 单弯软管）(700) | ||
| 14 | WG9925820009 | 1 | Tube | 高压软管(2100) | ||
| 15 | WG9925820046 | 1 | Tube | 高压软管(2800) | ||
| 16 | 1.90004E+11 | 1 | Tie-in | 卡套式三通管接头 | ||
| 17 | AZ9925821009 | 1 | Handpump bracket | 油泵支架 | ||
| 18 | AZ9925820020 | 1 | Drawstring | 驾驶室举升撑条总成 | ||
| 19 | Q40114 | 2 | Washer | 平垫圈 | ||
| 20 | Q5004030 | 2 | Axletree | 开口销 | ||
| 21 | Q5101428 | 1 | Axletree | 销轴(h11) | ||
| 22 | Q41814 | 2 | Washer | 波形弹性垫圈 | ||
| 23 | 1.90003E+11 | 15 | Plastic tie | 塑料紧固带 | ||
| 24 | AZ9925820017 | 1 | Bracket | 支撑下支座总成 | ||
| 25 | 1-99-960-010 | 1 | Rubber block | 橡胶减振块 | ||
| 26 | WG9925821031 | 1 | Electric dump | 电机总成 | ||
| 27 | WG9925820040 | 1 | Tube | 单弯软管(240) | ||
| 28 | WG9925820041 | 1 | Tube | 单弯低压软管(260) | ||
| 29 | Q150B0820 | 2 | Screw | 六角头螺栓 | ||
| 30 | Q40308 | 2 | Spring washer | 弹簧垫圈 | ||
| 31 | AZ9719820098 | 1 | Exponent | 举升说明牌 | ||
| 32 | AZ9719820099 | 1 | Exponent | 说明牌位置说明 |
