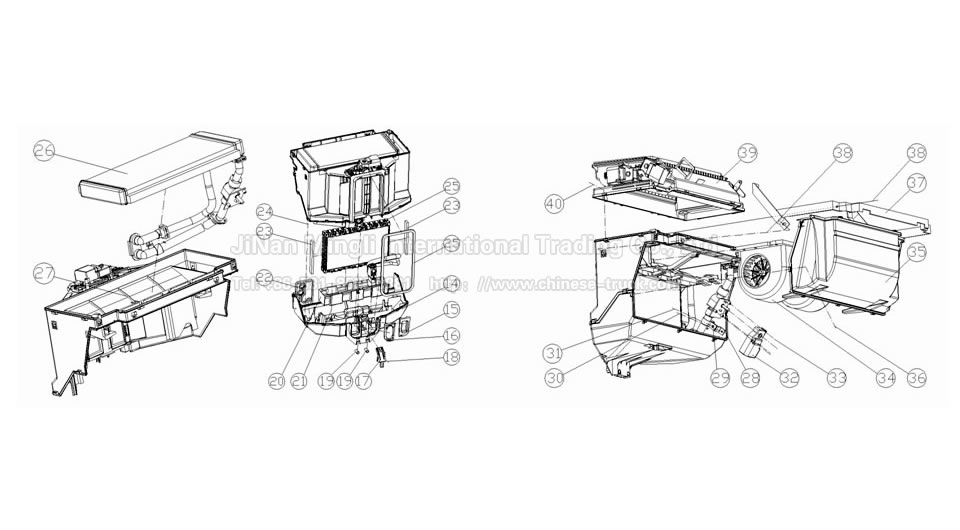

No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|
| 14 | AZ1664820007 | 1 | Lower shell | 空调下壳体 | ||
| 15 | AZ1664820012 | 1 | Sealing pad | 膨胀阀减振密封垫 | ||
| 16 | AZ1664820011 | 1 | Sealing pad | 暖风水管减振密封垫 | ||
| 17 | AZ1664820016 | 1 | water dropper | 滴水管座 | ||
| 17a | AZ1664820059 | 1 | water dropper / extended | 滴水管 | ||
| 18 | Q2714216 | 1 | Selftaping screw | 十字槽盘头自攻螺钉 | ||
| 19 | AZ1664820022 | 2 | Sleeve | 间隔套管 | ||
| 20 | AZ1664820062 | 1 | Evaporator bracket lower | 蒸发器下支架 | ||
| 21 | Q2714295 | 3 | Selftaping screw | 十字槽盘头自攻螺钉 | ||
| 22 | AZ1664820013 | 1 | Sealing pad | 水管减振定位垫 | ||
| 23 | AZ1664820068 | 2 | Sealing pad | 蒸发器密封条 | ||
| 24 | AZ1664820903 | 8 | Spring cliper | 弹簧卡片 | ||
| 25 | WG1664820014/1 | 1 | Evaporator | 蒸发器总成 | ||
| 26 | AZ1664821015 | 1 | Heater core assembly | 暖风散热器总成 | ||
| 27 | AZ1664820008 | 1 | Mid shell assembly | 空调中壳体总成 | ||
| 28 | AZ1664820072 | 1 | Bracket | 水管支架 | ||
| 29 | Q68620 | 1 | Cliper | 单管夹片 | ||
| 30 | Q4420410 | 2 | Rivet | 封闭型扁圆头抽芯铆钉 | ||
| 31 | Q2140620 | 2 | Selftaping screw | 十字槽盘头螺钉 | ||
| 31a | Q40206 | 2 | Washer | 大垫圈 | ||
| 31b | Q340B06 | 2 | Hexagon nut | I型六角螺母 | ||
| 32 | WG1664820052/1 | 1 | Driver / water valve control | 水阀控制电机 | ||
| 33 | Q2713525 | 3 | Selftaping screw | 十字槽盘头自攻螺钉 | ||
| 34 | WG1664820017 | 1 | Blower | 鼓风机总成 | ||
| 34a | WG1664820018/1 | 1 | Speed adjuster | 调速模块总成 | ||
| 34b | Q2714216 | 2 | Selftaping screw | 十字槽盘头自攻螺钉 | ||
| 34c | WG1664820019/1 | 1 | Temperature sensor / evaporator | 蒸发器温度传感器 | ||
| 35 | AZ1664820010 | 1 | Cover | 空调风机盖板 | ||
| 36 | AZ1664820903 | 9 | Spring cliper | 弹簧卡片 | ||
| 37 | AZ1664820021 | 1 | Bracket | 空调机安装支架 | ||
| 38 | Q2140510 | 4 | Selftaping screw | 十字槽盘头螺钉 | ||
| 39 | AZ1664821009 | Upper shell assembly | 空调上壳体总成 | |||
| 40 | AZ1664820903 | 8 | Spring cliper | 弹簧卡片 |
