No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|

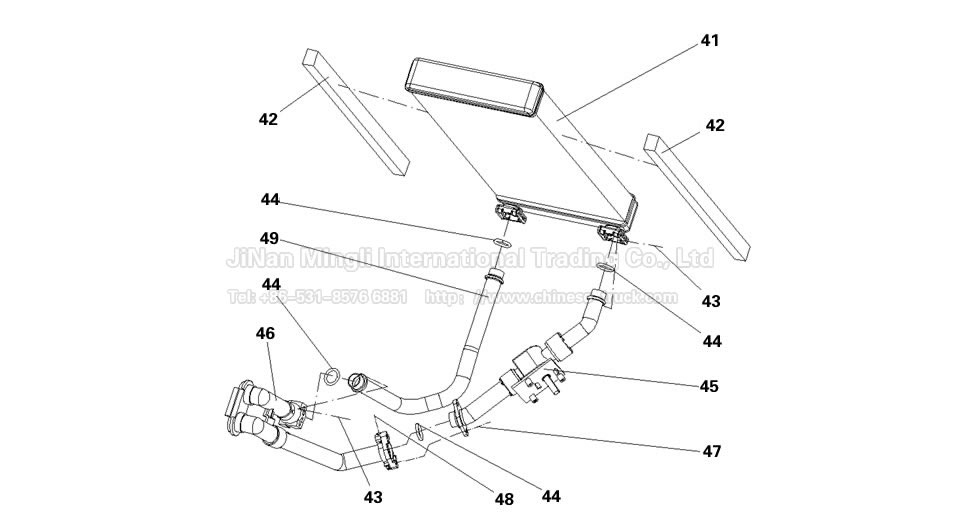

| 41 | WG1664820053/1 | 1 | Heater core | 暖风散热器总成 | ||
| 42 | AZ1664820067 | 2 | Sealing pad | 散热芯密封条 | ||
| 43 | AZ1664820055 | 3 | Pin | 固定插销 | ||
| 44 | AZ1664820901 | 4 | O ring | O形密封圈 | ||
| 45 | AZ1664820054 | 1 | Water valve | 水阀总成 | ||
| 46 | AZ1664820057 | 1 | Combi-Pipe | 暖风水管接口总成 | ||
| 47 | Q2140425 | 2 | Flat head screw | 十字槽盘头螺钉 | ||
| 47a | Q40004 | 2 | Washer | 小垫圈 | ||
| 47b | Q40304 | 2 | Spring washer | 弹簧垫圈 | ||
| 48 | Q310B04 | 2 | Nut | 方螺母 | ||
| 49 | AZ1664820056 | 1 | Pipe | 水管 |
