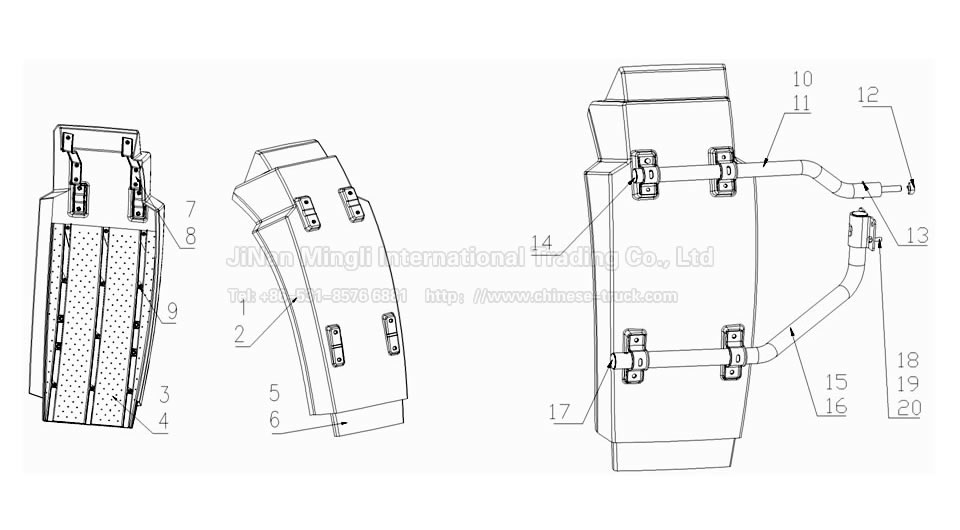

No.
|
Part number
|
Quantity
|
Designation
|
Designation
|
Name
|
Note
|
1 | AZ1664230085 | 1 | rear wing left | 左后翼子板 | ||
2 | AZ1664230086 | 1 | rear wing right | 右后翼子板(与左件对称) | ||
3 | AZ1664230087 | 1 | rear wing left plate I | 左后翼子板衬层I | ||
4 | AZ1664230287 | 1 | rear wing right plate I | 右后翼子板衬层I(与左件对称) | ||
5 | AZ1664230088 | 1 | rear wing left plate II | 左后翼子板衬层II | ||
6 | AZ1664230288 | 1 | rear wing right plate II | 右后翼子板衬层II(与左件对称) | ||
7 | AZ1664230189 | 2 | rear wing left breaket | 左后翼子板撑架总成 | ||
8 | AZ1664230290 | 2 | rear wing right breaket | 右后翼子板撑架总成(与左件对称) | ||
9 | Q2204816 | 32 | screw | 十字槽盘头自攻螺钉和平垫圈组合件 | ||
10 | AZ1664230180 | 1 | up-breaket left | 后翼子板左上支架总成 | ||
11 | AZ1664230190 | 1 | up-breaket right | 后翼子板右上支架总成 | ||
12 | Q33016 | 2 | hexagon | 全金属六角法兰面自锁螺母 | ||
13 | Q5280665 | 2 | pin | 弹性圆柱销 | ||
14 | AZ1664230185 | 2 | up cover | 上堵盖 | ||
15 | AZ1664230200 | 1 | bottom-breaket left | 后翼子板左下支架总成 | ||
16 | AZ1664230210 | 1 | bottom-breaket right | 后翼子板右下支架总成(与左件对称) | ||
17 | AZ1664230205 | 2 | bottom cover | 下堵盖 | ||
18 | Q150B1250 | 8 | hexagon | 六角头螺栓 | ||
19 | Q40112 | 16 | washer | 平垫圈 | ||
20 | Q33212 | 8 | hex nut | 2型全金属六角锁紧螺母 |
