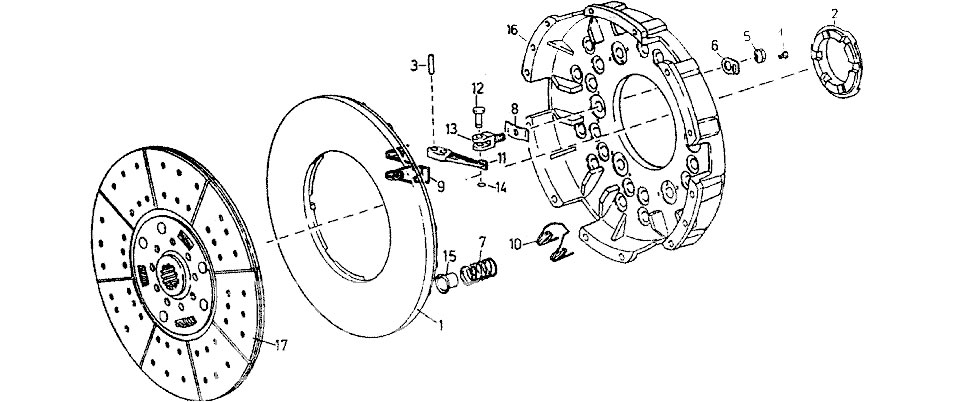

F420mm clutch

F420mm clutch



NO. Part number Note Name
0 BZ1560161090   Clutch assembly (1-16) 420 mm 62,87 engine
0 BZ1560160013   Clutch assembly (1-16) 420 mm 69 engine
1 BZ1560161093   Pressure Plate
2 BZ1560161212   Thrust ring
3 BZ1560161100   The axis of the screw-down lever
4 BZ1560161119
5 BZ1560161112
6 BZ1560161113
7 BZ1560161114   Pressure spring
7 BZ1560161115   Pressure spring
7a BZ1560161116   Pressure spring
7a BZ1560161116   Pressure spring
8 BZ1560161097
9 BZ1560161081   Spring
10 BZ1560161084   Spring
11 BZ1560161096   Push lever
12
13 BZ1560161108   Support screw lever
14 Q43710
15 BZ1560161117
16 BZ1560161125   Clutch
17 WG1560161130   Driven clutch
