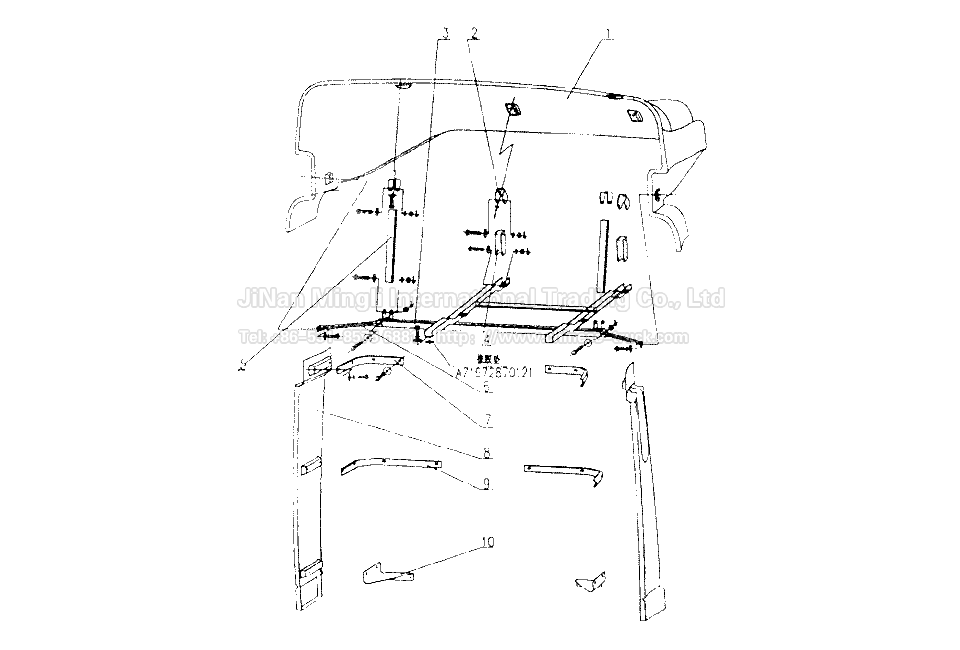

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 1 | WG1642870141 | Wing | ||
| 2 | AZ1642870145 | |||
| 2a | Q150B0820 | Screw | ||
| 2b | Q40208 | C-shaped washer | ||
| 2c | Q40308 | Spring washer | ||
| 3 | AZ1642870143 | Bracket | ||
| 3a | AZ1672870121 | Rubber gasket | ||
| 3b | Q150B0820 | Screw | ||
| 3c | Q40208 | C-shaped washer | ||
| 3d | Q40308 | Spring washer | ||
| 4 | AZ1642870148 | |||
| 4a | Q173B0870 | Screw | ||
| 4b | Q5002020 | Split Finger | ||
| 4c | Q40208 | C-shaped washer | ||
| 4d | Q41208 | Lock washer mnogolapchataya | ||
| 4e | Q241B08 | Nut | ||
| 5 | AZ1642870146 | Rear bracket | ||
| 5a | Q173B0870 | Screw | ||
| 5b | Q5002020 | Split Finger | ||
| 5c | Q40208 | C-shaped washer | ||
| 5d | Q41208 | Lock washer mnogolapchataya | ||
| 5e | Q341B08 | Nut | ||
| 6 | AZ1642870147 | Rear bracket | ||
| 6a | Q173B0870 | Screw | ||
| 6b | Q5002020 | Split Finger | ||
| 10 | AZ1644870015 | Bracket mounting right | ||
| 10a | AZ1644870018 | Mounting bracket left | ||
| 10b | Q150B0820 | Screw | ||
| 10c | Q40208 | C-shaped washer | ||
| 10d | Q40308 | Spring washer |
