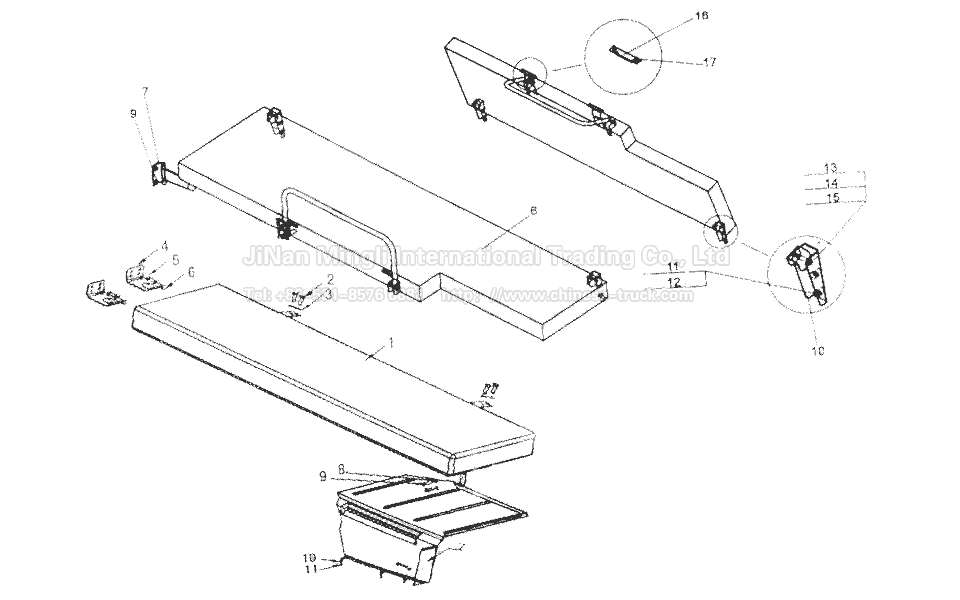

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 1 | AZ1643570001 | Sleeping | ||
| 2 | Q150B0825 | Screw | ||
| 3 | Q40008 | Washer | ||
| 4 | WG1643570008 | Outrigger assembly in the upper right | ||
| 5 | Q150B0825 | Screw | ||
| 6 | Q40008 | Washer | ||
| 7 | WG1643570010 | Asleep support assembly | ||
| 8 | Q150B0625 | Screw | ||
| 9 | Q40006 | Washer | ||
| 10 | Q150B0420 | Screw | ||
| 11 | Q40004 | Washer | ||
| 12 | AZ1644570001 | Asleep on the assembly | ||
| 13 | AZ1644570192 | Not moving plate | ||
| 13a | Q150B0820 | Screw | ||
| 13b | Q40108 | Washer | ||
| 13c | Q40308 | |||
| 14 | AZ1672570020 | Rod | ||
| 15 | Q150B0825 | Screw | ||
| 16 | Q40008 | Washer | ||
| 17 | Q5100850 | Pin | ||
| 18 | Q5003220 | Opening Sales |
