NO.
|
Part number
|
Qty
|
Name
|
Note
|

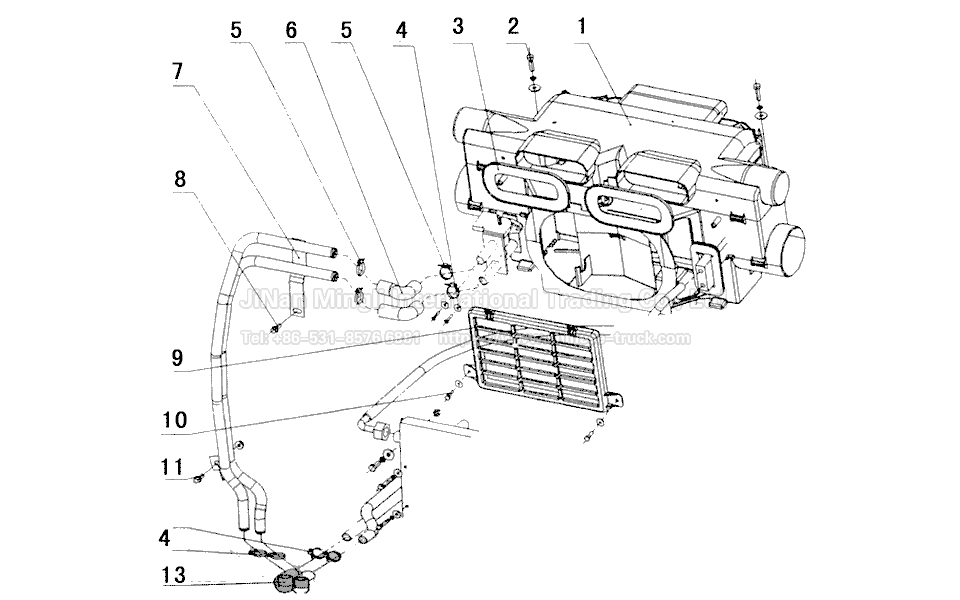

| 1 | AZ1630840302 | Heater assembly | ||
| 1.1 | AZ1630840013 | |||
| 2.1 | AZ1630840091 | Water pipe | ||
| 3.1 | AZ1630840319 | Water tank | ||
| 1-3-1 | AZ1630840074 | Water tank | ||
| 1-3-2 | AZ1630840020 | Valve | ||
| 1-3-3 | AZ1630840066 | Seal | ||
| 1-3-4 | AZ1630840073 | Pipe water supply | ||
| 1-3-5 | AZ1630840072 | |||
| 4.1 | AZ1630840015 | Air feeding | ||
| 5.1 | AZ1630840312 | |||
| 1.6 | AZ1630840092 | Compactor | ||
| 1.7 | AZ1630840063 | Connector | ||
| 1.8 | AZ1630840014 | Fan | ||
| 1-8-1 | AZ1630840014? 1 | Motor Fan | ||
| 1.9 | Q2714216 | Screw | ||
| 1.10 | AZ1630840321 | |||
| 1.11 | Electricity cable | |||
| 1-28 | AZ1630840037 | Intake left | ||
| 1-29 | AZ1630840038 | Intake right | ||
| 1-30 | AZ1630840040 | Air intake | ||
| 1-33 | AZ1630840036 | Air intake | ||
| 2 | Q150B0830 | Screw | ||
| 2a | Q40308 | |||
| 2b | Q40208 | |||
| 10 | Q150B0620 | |||
| 10a | Q40206 | |||
| 11 | Q1840825 | |||
| 11a | Q33008 | |||
| 12 | WG1642840092 |
