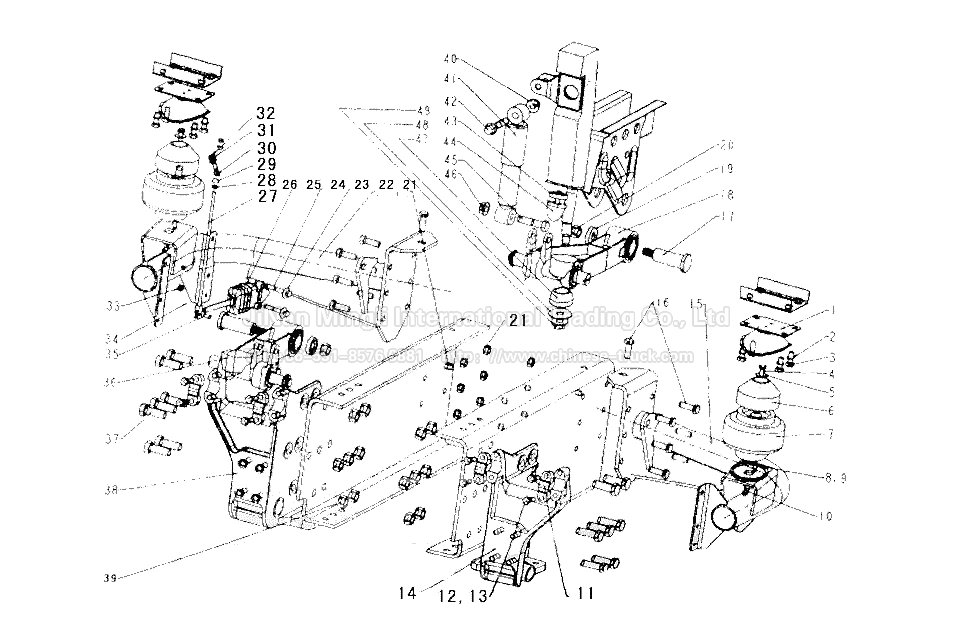

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 1 | AZ1642430125 | The upper ground spring bolt | ||
| 1 | AZ1642430030 | The upper base of the air bag | ||
| 2 | Q40310 | Spring washer | ||
| 3 | Q150B1025 | Bolt | ||
| 4 | Q150B0820 | Bolt | ||
| 5 | Q41208 | Washer | ||
| 6 | WG1642430033 | Guide | ||
| 6 | AZ1642430116 | Washer | ||
| 7 | AZ1642430085 | Airbag | ||
| 7 | WG1642430117 | Spring bolt | ||
| 7 | WG1642430118 | Spring bolt | ||
| 8 | Q40308 | Spring washer | ||
| 9 | Q150B0820 | Bolt | ||
| 10 | WG1642430086 | |||
| 11 | AZ1642430043 | Cover | ||
| 12 | Q40312 | Spring washer | ||
| 13 | Q150B1235 | Bolt | ||
| 14 | AZ1642430041 | Front holder left | ||
| 15 | AZ1642430126 | The base of the left spring kronshteynv | ||
| 15 | WG142430010 | |||
| 15 | AZ1642430126 | |||
| 16 | Q151C1235 | Bolt | ||
| 17 | AZ1642430071 | Bolt | ||
| 18 | AZ1642430051 | Left arm pivoted | ||
| 19 | AZ1642430072 | Washer | ||
| 20 | 190003888459 | Nut | ||
| 21 | 190003888457 | Nut | ||
| 22 | 190003888457 | Nut | ||
| 23 | WG1642430020 | The base of the right spring bracket | ||
| 23 | AZ1642430127 |
