NO.
|
Part number
|
Qty
|
Name
|
Note
|

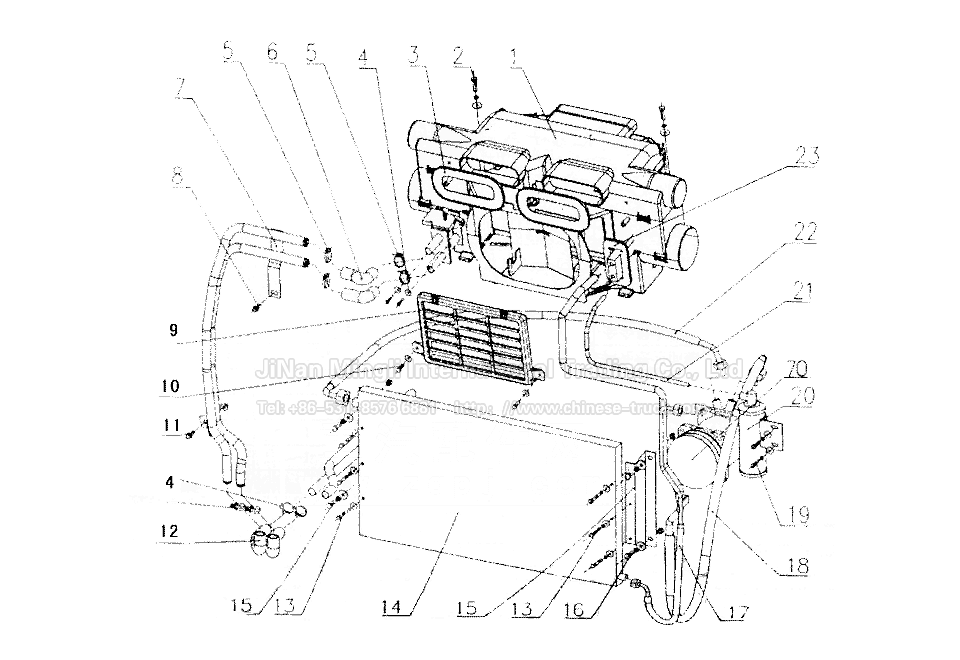

| 1 | WG1642820002 | Heater assembly | ||
| 1.1 | AZ1630840013 | Housing base | ||
| 2.1 | AZ1630840091 | Water pipe | ||
| 3.1 | AZ1630840319 | The water tank assembly | ||
| 1-3-1 | AZ1630840074 | Water tank | ||
| 1-3-2 | AZ1630840073 | Valve | ||
| 1-3-3 | AZ1630840066 | Ring | ||
| 1-3-4 | AZ1630840072 | Inlet water pipe | ||
| 1-3-5 | AZ1630840320 | outlet water pipeline | ||
| 4.1 | AZ1630840326 | Inlet pipe assembly | ||
| 5.1 | Q2723525 | Average body | ||
| 1.6 | AZ1642820010 | Sealing strip | ||
| 1-6-1 | AZ1642820010? 1 | |||
| 1-6-2 | AZ1642820010? 2 | Temperature probe | ||
| 1.10 | AZ1630840063 | Electric speed switch | ||
| 1.11 | 0AZ164282001 | Wiring | ||
| 1.12 | AZ1630840323 | |||
| 1-13 | Q2714216 | |||
| 1-14 | AZ1630840321 | |||
| 1-15 | AZ1630840049 | |||
| 1-16 | AZ1630840050 | |||
| 1-17 | AZ1630840051 | |||
| 1-18 | AZ1630840052 | |||
| 1-19 | AZ1630840065 | |||
| 1-20 | AZ1630840045 | |||
| 1-21 | AZ1630840046 | |||
| 1-22 | AZ1630840047 | |||
| 7 | AZ1630870015 | |||
| 8 | AZ1630840312 | Wiring Conditioner | ||
| 9 | AZ1630840092 | Temperature Sensor |
