NO.
|
Part number
|
Qty
|
Name
|
Note
|

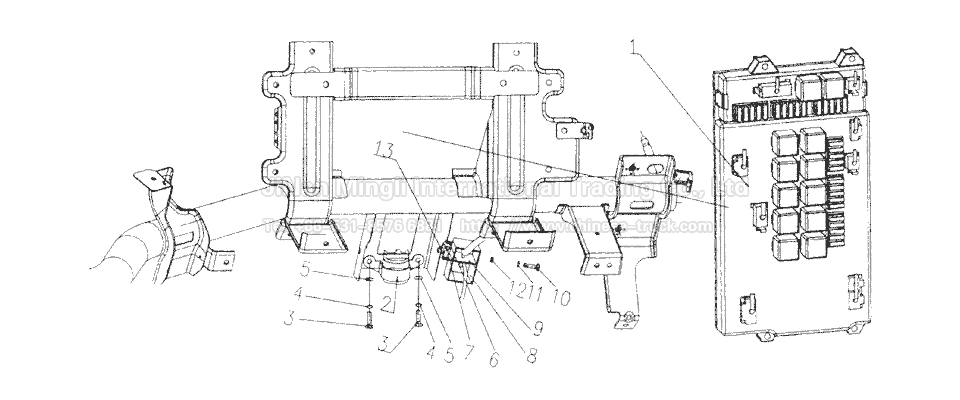

| 697 # 1 | AZ9719580002 | The right control module assembly | ||
| 697 # 1 # 1 | AZ9719580002? 1 | The right control module Ontology (without relay) | ||
| 697 # 1 # 2 | F1? 1 | - Seat adjustment fuse | ||
| 697 # 1 # 3 | F1? 2 | Key Switch fuse | ||
| 697 # 1? 4 | F1? 3 | Trailer ABS fuse | ||
| 697 # 1 # 5 | F1? 4 | Went to the lighter fuse | ||
| 697 # 1 # 6 | F1? 5 | Radio stations with a lighter right - fuse | ||
| 697 # 1 "7 | F2? 1 | Relational fuse | ||
| 697 # 1? 8 | F2? 2 | ABS fuse (# 30) | ||
| 697 # 1 # 9 | F2? 3 | ABS fuse (# 30) | ||
| 697 # 1? 10 | F2? 4 | Left electrical fuse box | ||
| 697 # 1? 11 | F2? 5 | The right electrical fuse box | ||
| 697 # 1 No. 12 | F3? 1 | Spare Fuse Relay | ||
| 697 # 1? 13 | F3? 2 | Spare Fuse Relay | ||
| 697 # 1? 14 | F3? 3 | ABS fuse (# 15) | ||
| 697 # 1? 15 | F3? 4 | Relational fuse (# 15) | ||
| 697? 1? 16 | F3? 5 | Power fuse № 15 | ||
| 697 # 1? 17 | F4? 1 | Turn on the lights the fuse | ||
| 697 # 1? 18 | F4? 2 | Power fuse # 30 | ||
| 697 # 1? 19 | F4? 3 | Seat heating fuse | ||
| 697 # 1? 20 | F4? 4 | Power fuse № 15 | ||
| 697 # 1? 21 | F4? 5 | Air dryer safety | ||
| 697 # 1? 22 | F5? 1 | Instrumentation and control module fuse on the left | ||
| 697 # 1? 23 | F5? 2 | Electrical fuse | ||
| 697 # 1? 24 | F5? 3 | AC fuse | ||
| 699 # 1? 25 | F5? 4 | Almost lights the fuse | ||
| 699 # 1? 26 | F5? 5 | Far lights the fuse | ||
| 699 # 1? 27 | F6? 1 | Position lights the fuse | ||
| 699 # 1? 28 | F6? 2 | D + Power fuse | ||
| 699 # 1? 29 | F6? 3 | To guard fog lamps | ||
