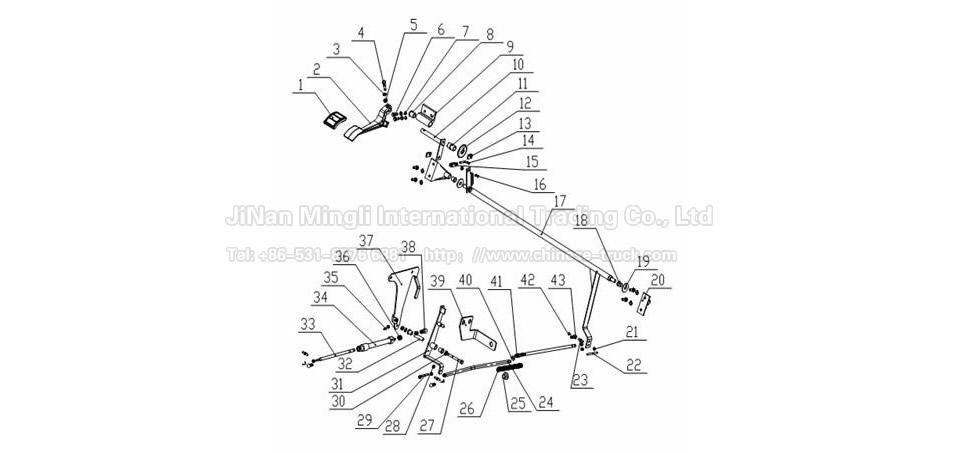

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 1 | AZ9719570001 | Rubber lining | ||
| 2 | AZ9719570002 | Pedal | ||
| 3 | Q40108 | Washer | ||
| 4 | Q150B0835 | Bolt | ||
| 5 | Q340B08 | Nut | ||
| 6 | Q150B0820 | Bolt | ||
| 7 | Q40308 | Spring washer | ||
| 8 | AZ9719570006 | Bush | ||
| 9 | AZ9719570007 | Bracket | ||
| 10 | WG9719570085 | Managing shaft | ||
| 10 | WG9719570003 | Managing shaft | ||
| 11 | AZ9719570008 | Bush | ||
| 12 | AZ9719570009 | Rubber ring | ||
| 13 | AZ9719570012 | Plastic clamp | ||
| 14 | AZ9719570011 | Adjusting screw | ||
| 15 | 190003964412 | Fork head | ||
| 16 | Q43650 | Circlip | ||
| 17 | Lever | |||
| 18 | AZ9719570023 | Bush | ||
| 19 | Q40212 | Washer | ||
| 20 | AZ9719570010 | Bracket | ||
| 21 | Q340B06 | Nut | ||
| 22 | AZ9719570051 | Hairpin | ||
| 23 | 190003963313 | Ball Heel | ||
| 24 | AZ9719570040 | Coupling | ||
| 25 | AZ9719570060 | Bush | ||
| 26 | AZ9719570061 | Spring | ||
| 27 | Q150B0870 | Bolt | ||
| 28 | Q33206 | Nut | ||
| 29 | AZ9719570052 | Hairpin | ||
| 30 | AZ9719570034 | Rubber tip | ||
| 31 | AZ9719570029 | Lever | ||
| 32 | AZ9719570033 | Extension | ||
| 33 | 199012570062 | Threaded rod | ||
| 34 | WG9100570002 | Work cylinder | ||
| 35 | Q150B0625 | Bolt | ||
| 36 | Q340B10 | Nut | ||
| 37 | AZ9719570026 | Bracket | ||
| 38 | 190003963623 | Cup ball joint | ||
| 39 | AZ9719570062 | Bracket | ||
| 40 | Q40206 | Washer | ||
| 41 | AZ9719570045 | Coupling | ||
| 42 | 190003936513 | Clamp | ||
| 43 | WG92 570025 | Cup ball joint |
