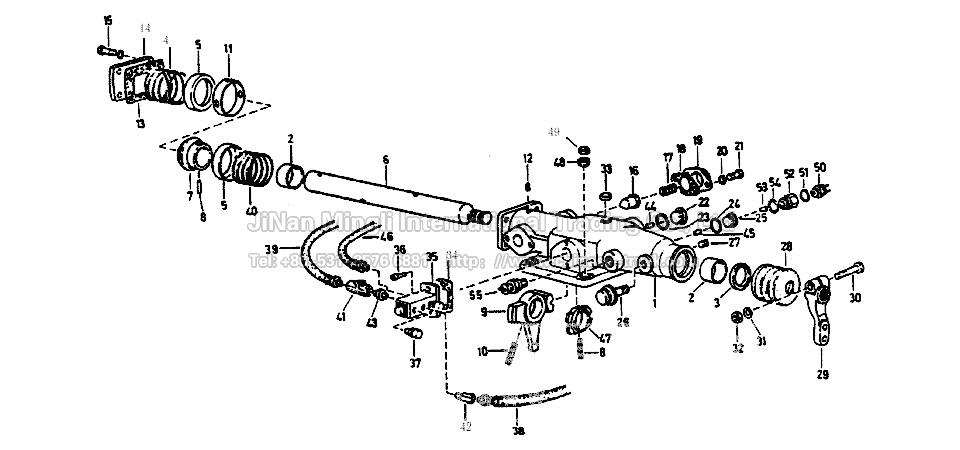

NO. | Part number | Note | Name |
0 | A-C03001-1 | WTP in the collection | |
0 | A-C03001 | WTP in the collection | |
1 | JS100-1702051 | Bearings | |
1 | F96194 | Bearings | |
2 | F91345 | Bearing shell | |
3 | F91444 | ||
4 | F99983 | Spiral | |
5 | F99673 | Seat springs | |
6 | F99697 | Helmsman gidrotselindr | |
6.1 | JS100-1702017 | Helmsman gidrotselindr | |
7 | F99675 | Circlip | |
8 | Q5000635 | Flexible tselendricheskaya pin | |
9 | F99585 | Plug | |
9.1 | JS100A-1702072 | Plug | |
10 | JA100A-1702073 | Pin | |
10.1 | C03030 | Pin | |
11 | F99674 | circlip | |
12 | C03004 | screw | |
13 | F99672 | Liner | |
14 | F99666 | ||
15 | M8 * 12 | Screw | |
16 | F99670 | Plug | |
17 | F96037 | Spring | |
18 | F96140 | Liner | |
19 | F96141 | Spring | |
20 | M8 * 12 | Bolt | |
21 | Q40108 | Gasket | |
22 | Q61518 | Plug | |
22 | 99012710041 | ||
23 | 17179 | Liner |
