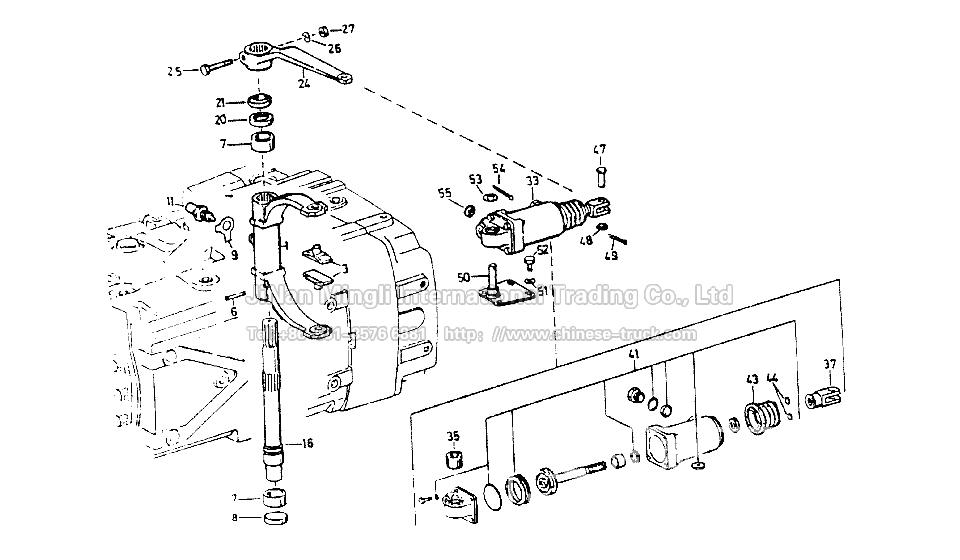

The mechanism of switching CAT 5S-111GP,5S-150GP,4S-130GP

The mechanism of switching CAT 5S-111GP,5S-150GP,4S-130GP

NO.
Part number
Qty
Name
Note
338_1 2159328001   High and low gear Plectrum
338_1 1269328288   High and low gear Plectrum
338_3 1295334027   High and low gear allocated block
338_6 0631329086   Flexible cylinder contact
338_7 0730260355   Shaft Bushing
338_8 0630361078   Connect a sealed envelope
338_9 0630603010   Binaural only move washer
338_11 1269288045   High and low self-defense device locks
338_16 1269334002   Shaft
338_20 0634300355   Shaft Seal
338_21 0634307405   Shaft sealing dust
338_24 1269328252   High and low gear Rocker
338_25 0636010092   High and low side bolts Rocker
338_27 0637006016   High and low gear Nut Rocker
338_27 0637006018   High and low gear Nut Rocker
338_33 0750132019   Shift Cylinder
338_35 0634308009   Seismic sets
338_37 0501305189   Connecting forklift
338_41 0501298046   Cylindrical Components
338_43 0734320116   Safety Kits
338_44 0501304049   Ventilation unit
338_47 0632102086   View Pin
338_48 0630001065   Washers
338_49 Q43114   Main trawlers -
338_49 0631701145   Opening Sales
340_50 1229201016   Shift cylinder bearings
340_52 0636015278   Bolt
340_53 0630001052   Washers
340_54 0631701145   Opening Sales
