NO.
|
Part number
|
Qty
|
Name
|
Note
|

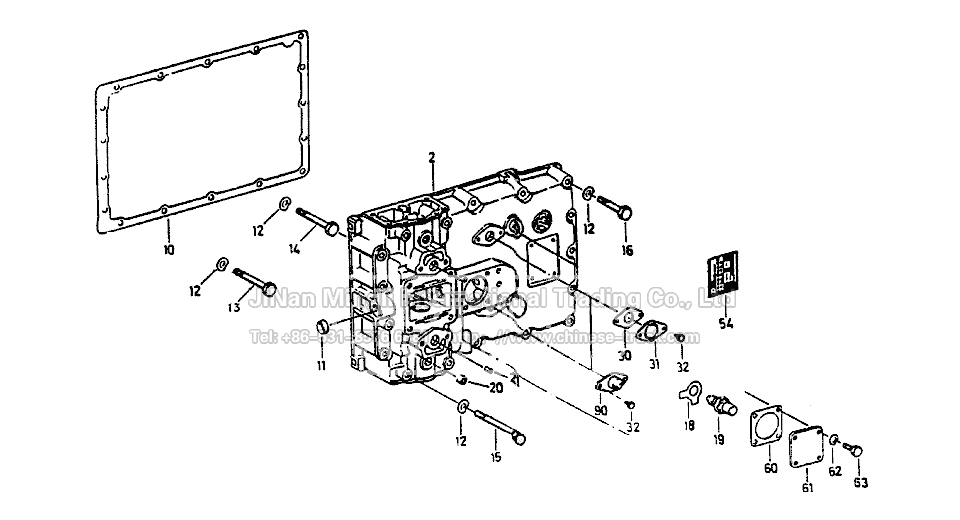

| 1 | 1269307484 | Gear shift mechanism | ||
| 1 | 1269307283 | Mehmnizm gear | ||
| 10 | 1269307026 | Compactor | ||
| 11 | 0630361050 | Cover | ||
| 12 | 0630302091 | Seal | ||
| 13 | 0636010199 | Screw | ||
| 14 | 0636010190 | Screw | ||
| 15 | 0636010200 | Screw | ||
| 16 | 0636010176 | Screw | ||
| 18 | 0630603010 | Locking plate | ||
| 19 | 1250307252 | Loaded Bolts | ||
| 20 | 0636301041 | Screw | ||
| 21 | 0730361073 | Cap | ||
| 30 | 1203307289 | Compactor | ||
| 31 | 1249301040 | Cover | ||
| 32 | 0636015020 | Screw | ||
| 33 | 0501203944 | Touch sensor | ||
| 34 | 0501309183 | Compactor | ||
| 35 | 1240307441 | Plate | ||
| 36 | 0501307450 | Switch | ||
| 60 | 1269307200 | Compactor | ||
| 61 | 1283307003 | Cover | ||
| 63 | 0636015278 | Screw | ||
| 91 | 9112710041 |
