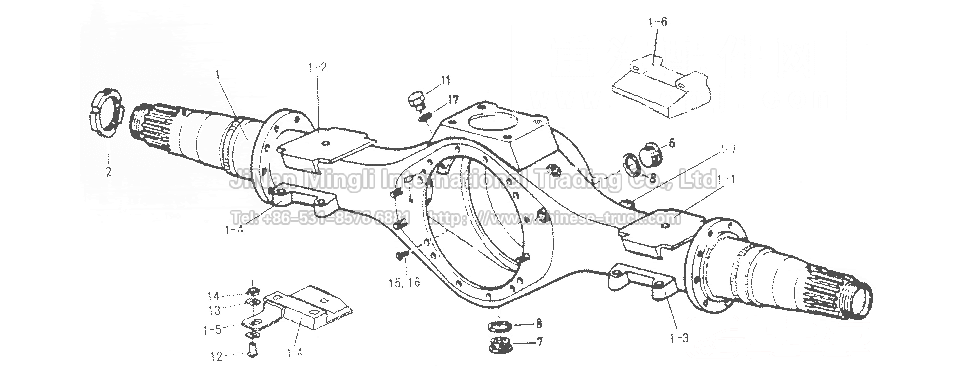

NO. | Part number | Note | Name |
1 | AZ9761330662 | The first banjo rear axle | |
1 | AZ9761330560 | The first banjo rear axle | |
1.1 | AZ9118330013 | Ground upper left | |
2.1 | AZ9118330019 | Ground upper right | |
3.1 | AZ9118330014 | Platform bottom left | |
4.1 | AZ9118330020 | Platform bottom right | |
5.1 | AZ9761336005 | Sensor holder | |
1.6 | AZ9761330002 | HW1697 Ground Spring | |
1.6 | AZ9761330001 | HW1697 Ground Spring | |
2 | 1227N1184 | Inner adjusting nut | |
2a | 1227P1186 | External adjusting nut | |
6 | 199000330006 | Breather | |
7 | 190003962021 | Magnetic Tube | |
8 | 1586330015 | Gasket | |
9 | Q72336 | Gasket | |
12 | WG41X1090 | Bolt | |
13 | WG1229N1626 | Washers | |
14 | WG40X1182 | Back nut | |
15 | MS2160601 | Bolt | |
15a | MS2161201 | Bolt | |
16 | MWA516 | Washer |
