Device Axle wheel

Device Axle wheel

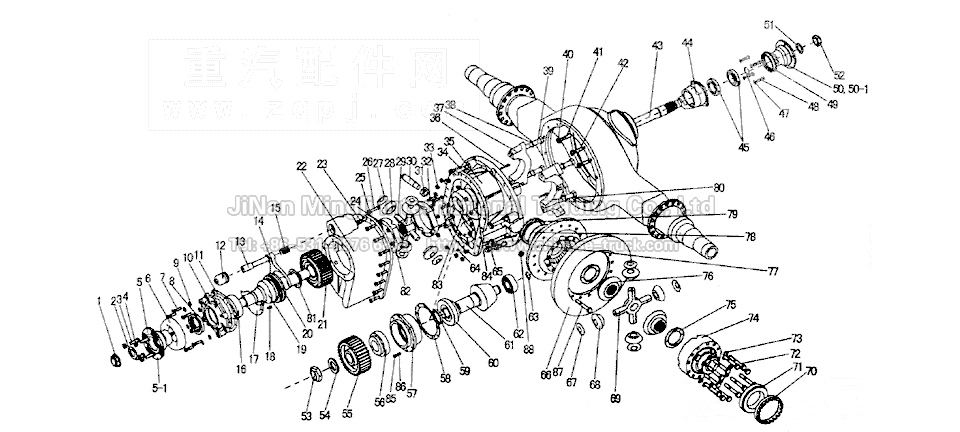

NO. Part number Note Name
0 AZ71613200114   HW1697 First rear axle (I = 4.22,)
0 AC71613200113   HW1697 First rear axle (I = 4.22,flange)
0 AC71613200112   HW1697 First rear axle (I = 4.22, Dual Tooth)
0 AC71613200110   HW1697 First rear axle (I = 4.22,)
0 AZ9761320421   HW1697 First rear axle (I = 3.73,without flange)
0 AZ9761320422   HW1697 First rear axle (I = 4.22,without flange)
0 AC71613200111   HW1697 First rear axle (I = 4.22,flange)
1 WG40X1233   Back nut
2 1229N1730   Washer
3 Q150B1445TF2   Bolt
4 Q33414T13F2   Back nut
5 AZ9761320208   Flange with Crestview notches £ 180 mm
5 AZ9761320165   Flat flange £ 180 mm
5 AZ9761320166   Flange with Crestview notches £ 180 mm
5 AZ9761320182   Flat flange £ 180 mm
1.5 AZ9761320183   Flat flange £ 180 mm
1.5 AZ9761320281   Flange with Crestview notches £ 180 mm
1.5 AZ9761320163   Flange with Crestview notches £ 180 mm
10 A3226H1126   Set bearings
1.10 3226H1126   Set bearings
2.10 HM813820   The outer ring bearing
11 2203K9241   Washer
11 2203L9242   Washer
11 2203M9243   Washer
12 A23261Q1057   Cylinder
1.12 2230J1180   Piston
2.12 5X1198   O-ring
3.12 3261Q1057   Cylinder
13 2244K1025   Traction
14 AZ9761321086   Shifting fork
43 AZ9761321010   Rivodnoy shaft
50 AZ9761320285   Flange with cross notches £ 165 mm
50-1 AZ9761320282   Flange with cross notches £ 165 mm
67 1229K3001   Ring
68 AZ118321001   Bevel pinion
69 3278W335   Crossings differential
74 3235F2138   Carter differential 1 / 2 without flange
77 AZ9761322143   Carter differential 1 / 2 with the flange
