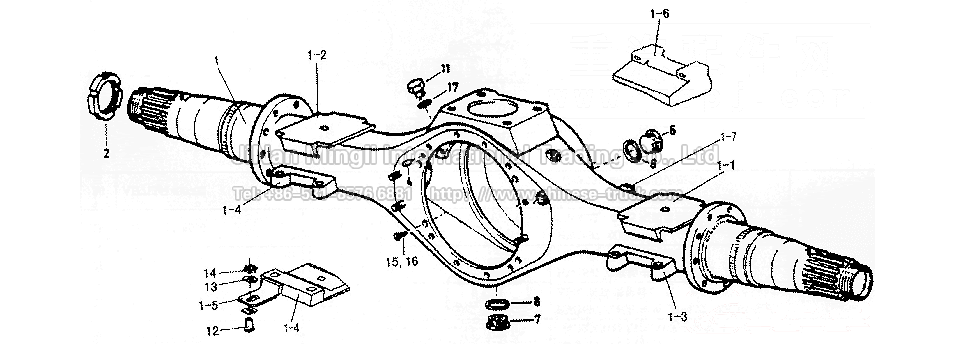

NO. | Part number | Note | Name |
1 | AZ9761330065 | HW1667 | |
1 | AZ9761330660 | HW1697 Stocking | |
1.1 | AZ9118330013 | The upper left-hand base | |
2.1 | AZ9118330019 | The upper right-hand basis | |
3.1 | AZ9118330014 | Lower base left | |
4.1 | AZ9118330020 | Lower right foundation | |
5.1 | AZ9761336005 | Support the front suspension | |
1.6 | AZ9761330002 | Reference plane | |
1.7 | AZ9118330015 | Bracket | |
2 | 1227N1184 | ||
2a | 1227P1186 | ||
6 | 181500010163 | Screw | |
7 | 1586330015 | Magnetic Tube | |
8 | Q72336 | Seal | |
11 | 199000330006 | Valve | |
12 | WG41X1090 | Screw | |
13 | WG1229N1626 | C-shaped washer | |
14 | WG40X1182 | Castle nut | |
15 | MS216060 | Screw | |
15a | MS216120 | Screw | |
16 | MWA516 | C-shaped washer |
