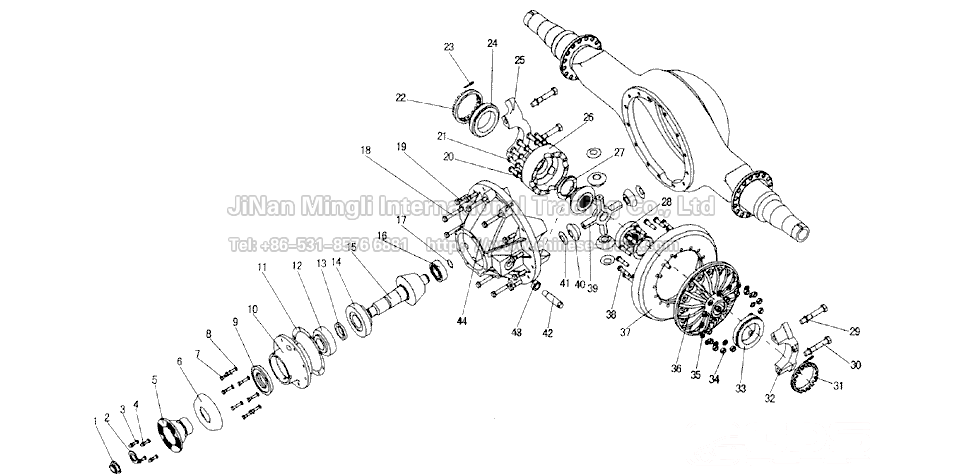

HOWO rear axle

HOWO rear axle

NO. Part number Note Name
514-0 AC71313200660   HW16 bridge gear assembly (I = 4.22,plug flange,no differential lock)
514-0 AC71613200662   HW1667 axle gear assembly (I = 4.22,pipe flange)
514-0 AC71613200663   HW1667 axle gear assembly (I = 3.73,tube)
514-0 AC71613200130   HW16 bridge gear axle (I = 4.22,imported pipe flange Tooth)
514-1 WG40X1233   Mobile lock nut
514-2 1229N1730   Washers
514-3 Q151C1245   20.60 partying
514-4 190003888457   Mobile lock nut
514-5 AZ9761320167   Before the flat flange
514-5 AZ9118320280   Chill the front of the flange assembly
514-5 AZ9761320380   Face of flange assembly (pipe)
514-5-1 AZ9761320168   Ontology pipe flange
514-5-1 AZ9761320381   Face of flange assembly (pipe)
514-5-1 AZ9118320281   Chill the front of the flange Ontology
514-6 3264G189   Cocoon
514-7 41X1408   20.60 partying
514-8 1229C1511   Gear housing and housing bridge between shoe
514-9 A1205Q2591   Print collections
514-10 AZ9761320001   Enclosures
514-11 2803Z2756   Laying of the active cone of the hood
514-11 2803Y2755   Laying of the active cone of the hood
516-11 2803B2758   Laying of the active cone of the hood
516-11 2803A2757   Laying active conical part covers
516-12 HY15311-H715334   With a ring with inner race
516-13 S2203H8536   Adjusted Pad Group
516-14 9220-9278   With a ring with inner race
516-15 AZ9761321014   At the initiative of the conical device assembly
516-15 AZ9118321014   At the initiative of the conical device assembly
516-16 WG1228S1267   Roller
516-17 1229L1624   Val Hubkap
