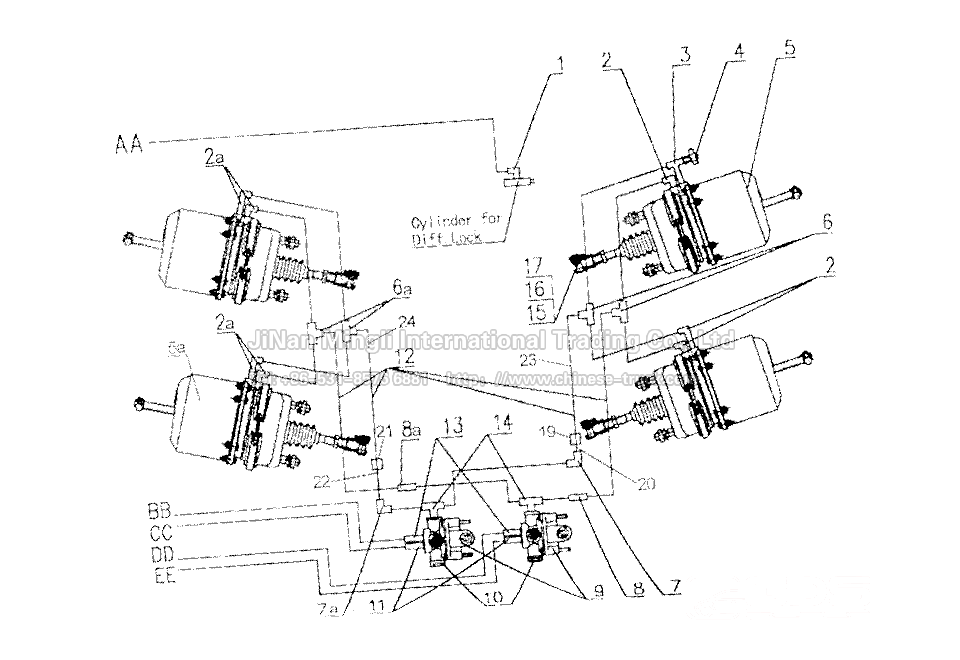

Scheme of the pneumatic actuator brakes

Scheme of the pneumatic actuator brakes

NO. Part number Note Name
1 190003559496   Angled nozzle 6
2 190003559946   Angled nozzle 12-7 pcs
3 WG99100360114   T-shaped Fortunka 12
4 WG9000360314   Test connector
5 WG9000360108   , Front brake chamber (6x4, 8x4, 6x2) -2 pc
5 WG9100360011   , Front brake chamber (STEYR 6x2)-2pcs
5.1 WG9100360303   , Front brake chamber (6x4, 8x4, 6x2 STEYR)-2pcs
6 WG9003550006   T-shaped Fortunka 12-2 pcs
7 190003559479   Injector
8 190003559474   Injector
9 WG9000360134   Rear brake chamber-2 pcs
10 190003962038   Bolt 2 pieces
11 190003559948   Nozzle-2 pcs
12 WG17017360470   Brake hose assembly -4 pc
12 WG17017360470   Brake hose assembly -2 pc
12 WG17017360470   Brake hose assembly -1 pc
12a WG17017360460   Brake hose assembly -3 pc
13 190003559947   Nozzle-2 pcs
14 190003559946   Angled nozzle 12 (4x2) -2 pc
14 WG99100360112   T-shaped Fortunka 12-2pcs
15 190003903661   Bolt
16 Q40114   C-shaped washer
19 WG9718360002   ABS solenoid valve / WABCO
19 WG9718360001   ABS solenoid valve / KNORR
20 WG17017360480   Brake Hoses
