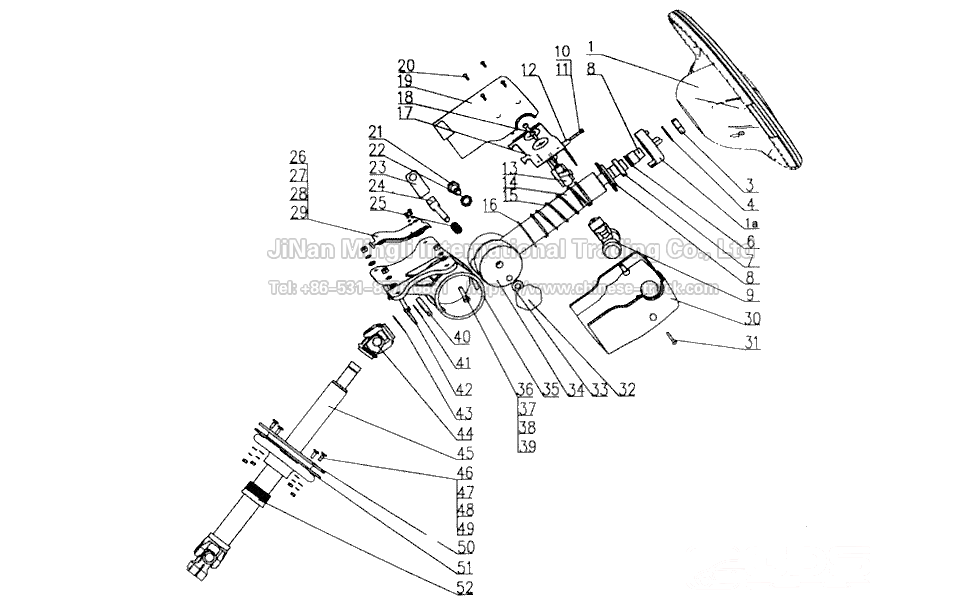

NO. |
Part number |
Note |
Name |
1 |
AZ9719470050 |
|
The steering shaft assembly with the steering. 1.1,2,19,30,46-52 |
1 |
AZ9719470100 |
|
Steering wheel |
1a |
WG9130583018 |
|
Return Ring |
2 |
AZ9130583024 |
|
Slipring |
3 |
Q351B22T15 |
|
Low nut |
4 |
Q41822 |
|
Spring washer |
6 |
Q43125 |
|
Circlip |
7 |
AZ9003320012 |
|
The ball bearing with deep. groove 61905GB/T276-94 |
8 |
AZ9719470053 |
|
Steering shaft |
9 |
WG9130583019 |
|
Ignition |
10 |
Q150B0530 |
|
Bolt |
11 |
Q340B05 |
|
Nut |
12 |
81.95801.0071 |
|
Roller |
13 |
81.46433.0005 |
|
Clamps |
14 |
AZ9719470051 |
|
Bush steering shaft |
15 |
AZ9123470129 |
|
Pressure spring |
16 |
AZ9123470130 |
|
Washer |
17 |
AZ9100470424 |
|
Bracket |
18 |
Q150B0865 |
|
Bolt |
19 |
AZ9719470041 |
|
Cover steering column (behind) |
20 |
Q2720412 |
|
Samonareznoy screw |
21 |
AZ9719470057 |
|
Screw limitations of the |
22 |
Q40316 |
|
Spring washer |
23 |
AZ9719470058 |
|
Elastic strap |
24 |
AZ9719470055 |
|
Adjustment-fixing bolt |
25 |
AZ9123470153 |
|
Pressure spring |
26 |
AZ9719470052 |
|
Bracket fastening wire bundles |
27 |
Q150B0408 |
|
Bolt |
28 |
Q40304 |
|
Spring washer |
29 |
Q40104 |
|
Washer |
30 |
AZ9719470042 |
|
Cover steering column (front) |
31 |
Q2714250 |
|
Samonareznoy screw |
32 |
AZ9123470150 |
|
Wheel of manual adjustment |
34 |
AZ9719470054 |
|
AZ9719470054 guide bushing steering column |
35 |
AZ9719470056 |
|
Mounting bracket steering column |
40 |
AZ9003320013 |
|
The ball bearing with deep groove 61806GB/T276-94 |
44 |
AZ9719470043 |
|
Cardan joint |
45 |
AZ9719470044 |
|
Telescopic steering shaft |
50 |
AZ9719470045 |
|
Protective cover steering shaft |
52 |
AZ9100470410 |
|
Bush |
