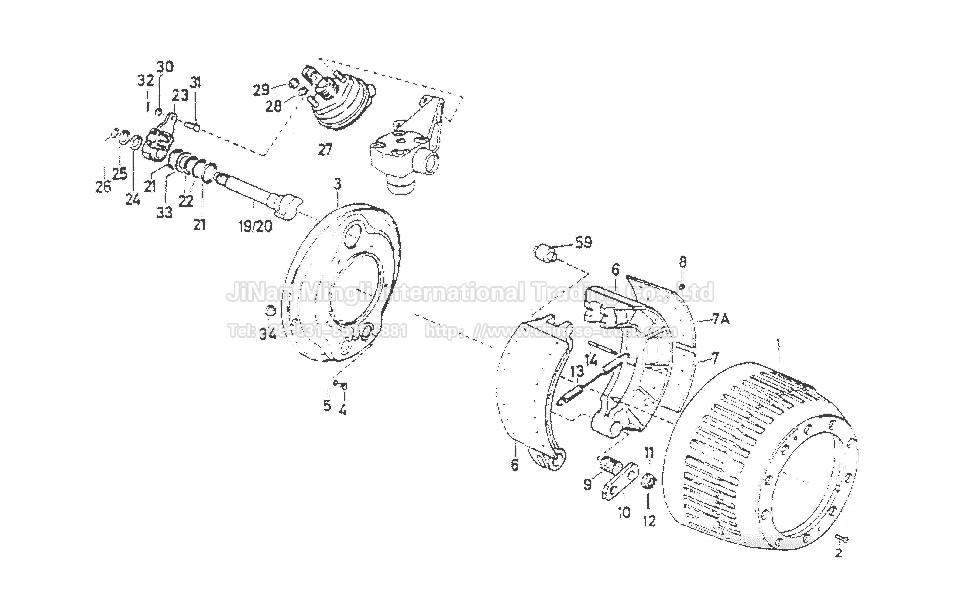

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 1 | AZ9112440001 | Brake drum | ||
| 2 | Q2541025 | Spire axle | ||
| 3 | 199112440006 | |||
| 4 | Q150B0816 | Hairpin | ||
| 5 | Q40308 | Nut | ||
| 6 | 199000440031 | Brake shoe | ||
| 6.1 | 1990000440018 | brake shoe assembly | ||
| 7 | WG9100440027 | Brake lining short | ||
| 7.1 | WG9100440029 | Brake lining long | ||
| 8 | 189000340068 | Rivet | ||
| 9 | WG880440006 | Sleeves | ||
| 10 | 1880440008 | Bracket | ||
| 11 | Q381B24 | Nut | ||
| 12 | Q5005045 | Hairpin | ||
| 13 | AZ9100440060 | Spring | ||
| 14 | 1880440032 | Hairpin | ||
| 19 | 199100440001 | Expansion cam left | ||
| 20 | 199100440002 | Expansion cam right | ||
| 21 | 1880440010 | Circlip | ||
| 22 | 1880340023 | Seal | ||
| 23 | AZ9100440005 | Brake lever adjustment (ratchet) front | ||
| 24 | 1880340023 | Circlip | ||
| 27 | 199100360058 | Front brake chamber |
