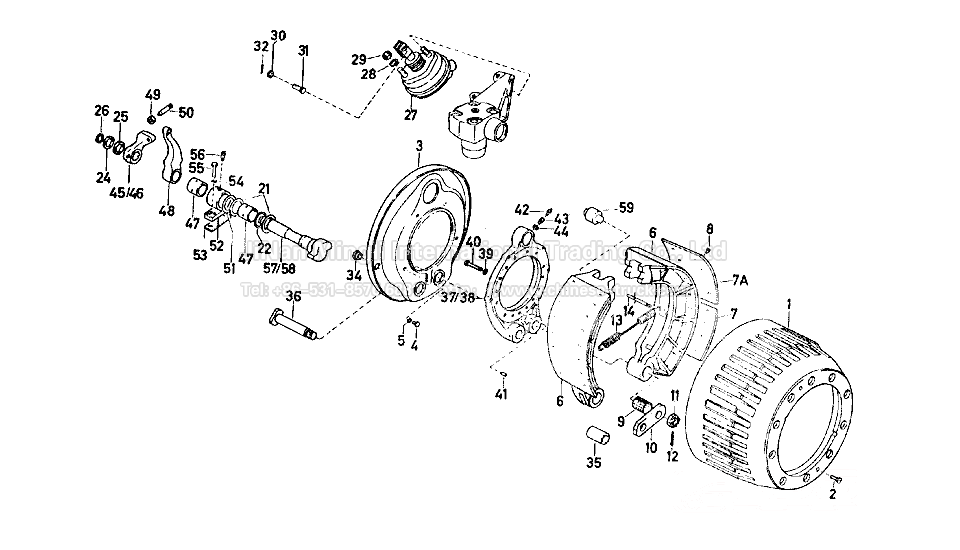

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 1 | 199112440003 | Brake drum | ||
| 2 | Q2141020 | Hairpin | ||
| 3 | 1880440019 | |||
| 4 | Q15B0816 | Bolt | ||
| 5 | Q40308 | |||
| 6 | 199000440031 | Brake | ||
| 6.1 | 199000440018 | Brake assembly | ||
| 7 | 199000440029 | Brake lining short (6x4-4 pcs 8x4-8 pcs) | ||
| 7a | 199000440027 | Brake lining long (6x4-4 pcs 8x4-8 pcs) | ||
| 8 | WG880340039 | Rivet | ||
| 9 | 1880440006 | Sleeves | ||
| 10 | WG80440008 | |||
| 11 | 190003872369 | |||
| 12 | Q5005040 | |||
| 13 | AZ9100340012 | Brake spring | ||
| 14 | 1880440032 | Hairpin | ||
| 21 | 1880440010 | Omentum | ||
| 22 | 1880340023 | Circlip | ||
| 24 | 1880340022 | Omentum | ||
| 25 | 1880320028 | gasket | ||
| 25.1 | 180320046 | Gasket | ||
| 25.2 | 1880320029 | Gasket | ||
| 25.3 | 1880320030 | Gasket | ||
| 26 | 190003933116 | |||
| 27 | 199100360058 | Diaphragm brake chambers (left) | ||
| 27a | 199100360059 | Diaphragm brake chamber (right) | ||
| 27b | DZ9100440001 | Brake chamber (left) | ||
| 27c | DZ9100440002 | Brake chamber (right) | ||
| 28 | Q41216 | Washer | ||
| 29 | Q341B16 | Nut |
