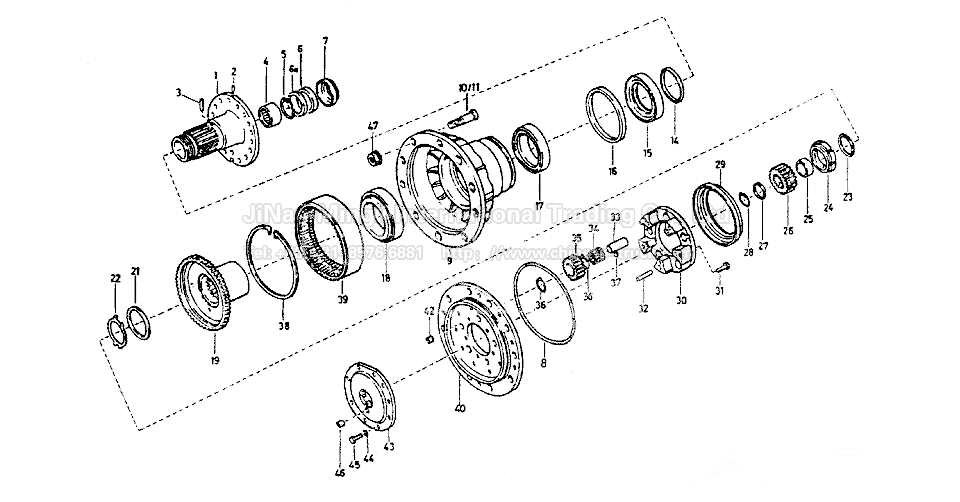

NO.
|
Part number
|
Qty
|
Name
|
Note
|
| 1 | 199000420029 | Front axle shaft | ||
| 1.1 | 1880410076 | Front axle shaft | ||
| 2 | 1880410102 | |||
| 3 | 1880410109 | |||
| 4 | 1880410069 | Bearing | ||
| 5 | Q43870 | circlip | ||
| 6 | AZ9100410018 | omentum | ||
| 6a | AZ9100410019 | Omentum | ||
| 7 | 199000410107 | |||
| 8 | 1880420012 | circlip | ||
| 9 | 199000420052 | Gear housing | ||
| 10 | 199000410103 | Bolt | ||
| 11 | 199000410103 | Bolt | ||
| 14 | 1406060011 | Seal | ||
| 15 | 1880420028 | Bearing | ||
| 16 | AZ9100410015 | Gasket | ||
| 17 | 190003326443 | Bearing | ||
| 18 | 190003326445 | Bearing | ||
| 19 | 199112340021 | |||
| 21 | 1880420034 | Omentum | ||
| 22 | 1680340015 | Thrust washer | ||
| 23 | 1680340019 | Gasket | ||
| 23 | 1680340187 | Gasket | ||
| 23 | 1680340017 | Gasket | ||
| 23 | 1680340018 | Gasket | ||
| 23 | 1680340016 | Gasket | ||
| 24 | 1680340013 | |||
| 25 | 1880420022 | Ring | ||
| 26 | 1880420003 | Gear | ||
| 27 | 1880440010 | gasket |
