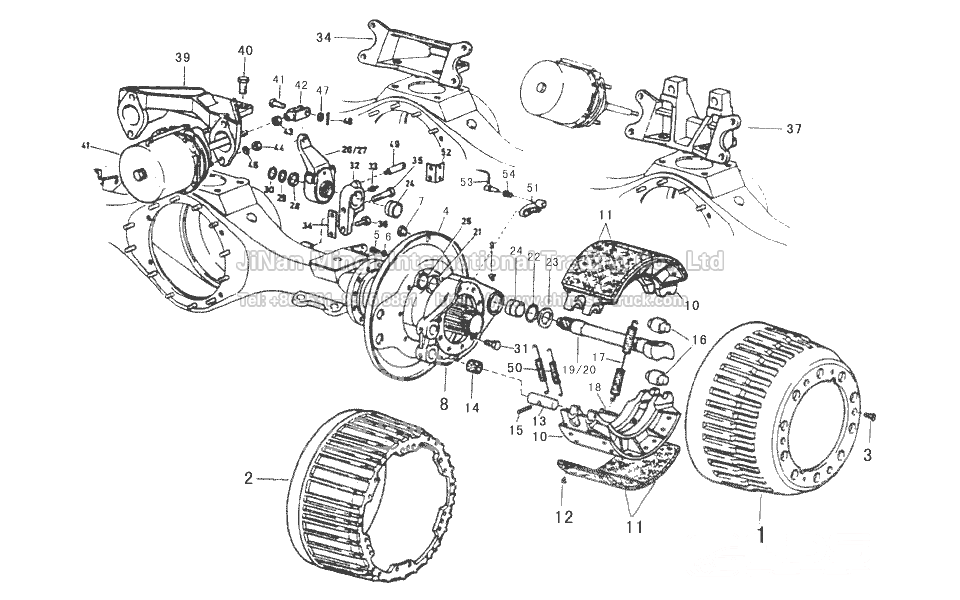

The brake mechanism of the rear axle
|
NO. |
Part number |
Note |
Name |
|
1 |
AZ9112340006 |
|
Brake drum |
|
3 |
190003825513 |
|
Pin axle |
|
4 |
1880340018 |
|
Flap |
|
5 |
Q150B0816 |
|
Bolt |
|
6 |
Q40308 |
|
Seal |
|
7 |
1880340037 |
|
washer |
|
8 |
199000340062 |
|
Support |
|
8a |
AZ9112340010 |
|
Touch sensor |
|
8b |
AZ9112340056 |
|
Touch sensor |
|
9 |
199000343114 |
|
Grease cup |
|
10 |
199000340061 |
|
Brake shoe |
|
11 |
WG9200340068 |
|
Brake linings |
|
12 |
189000340068 |
|
Rivet |
|
13 |
199000340064 |
|
Pin |
|
14 |
1880340016 |
|
Bush pin |
|
15 |
190003909661 |
|
Spring is short |
|
16 |
199000340027 |
|
Roller pad |
|
17 |
az9100340012 |
|
Spring Brake long |
|
18 |
1880440032 |
|
Brake Hoses |
|
19 |
199112340026 |
|
Expansion cam left |
|
20 |
199000340070 |
|
Expansion cam right |
|
21 |
1880440010 |
|
Circlip |
|
22 |
1880340023 |
|
Gasket |
|
23 |
1880440010 |
|
Circlip |
|
24 |
WG9100340017 |
|
Bearing shell |
