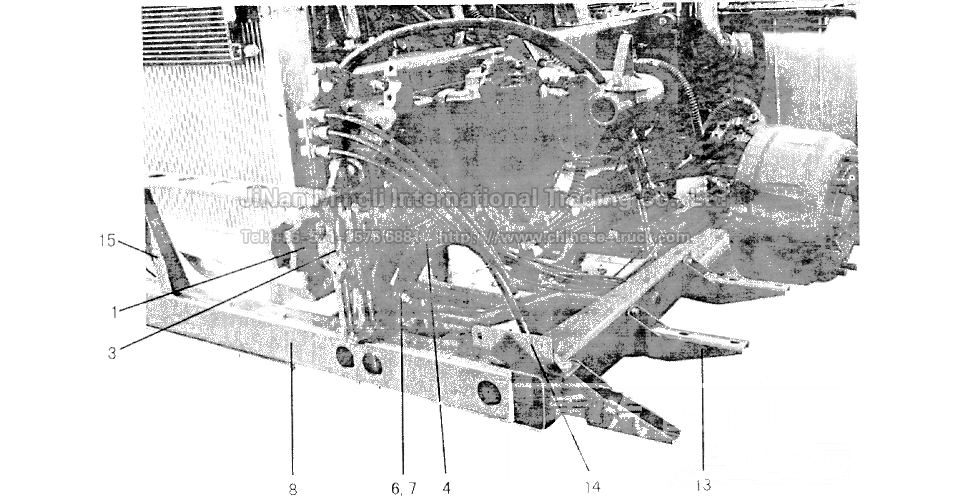

Bumper bracket, front towing device

Bumper bracket, front towing device

NO. Part number Note Name
561-1 AZ9725930028   Before towing hooks Block
561-1a Q151b1660   20.60 partying
561-1b 190003888459   Mobile lock nut
561-1c Q15B1465   20.60 partying
561-1d 190003888458   Mobile lock nut
561-2 AZ9114930094   Traction contact assembly
561-2a AZ9114930093   Tow hooks
561-3 Q40312   Spring pads
561-3 AZ9725930007   Bumper Bracket
561-3 AZ9725930002   Bumper Bracket
561-3a Q151C1230   20.60 a party (small teeth)
561-4 AZ9725930003   Subsidiary level mark
561-4a Q151B1445   20.60 partying
561-4b 190003888458   Mobile lock nut
561-6 AZ9725930004   Sleeve
561-7 AZ9725930005   Sleeve
561-7a Q151B1690   20.60 partying
561-7b 190003888459   Mobile lock nut
561-8 WG9725930060   Prior to protect against drilling assembly (high bumpers)
561-8 WG9725930010   Before you against drilling assembly to protect the aircraft
561-8a Q150B1025   20.60 partying
561-8b Q33210   Two metal hex lock nut
561-9 AZ9725930008   Bumper to stand (high bumpers)
561-9 AZ9725930006   Bumper to Stand
561-9a Q150B1025   20.60 partying
563-10 AZ9725930045   Water purification Stand Build
563-10 AZ9725930040   Water Treatment Stand assembly
563-10a Q40210   Large washers
563-10b Q33210   Two 2.60 Full Metal locking nut
563-10c Q150B0860   20.60 partying
