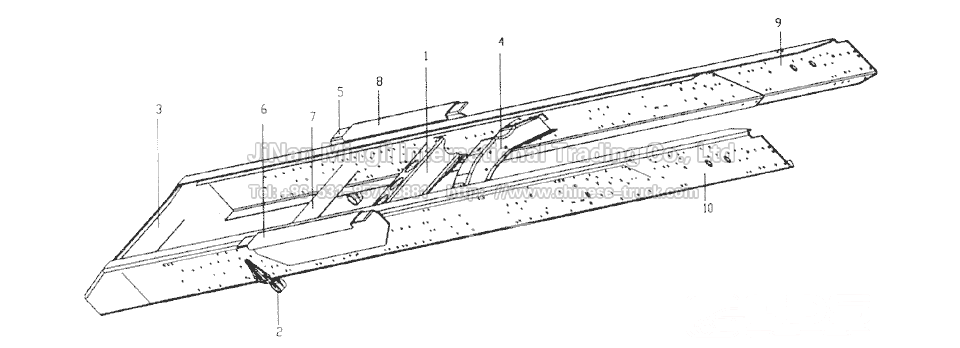

4x2 truck chassis frame

4x2 truck chassis frame

NO. Part number Note Name
541-1 AZ9719510020   Beam assembly
541-2 199100510008   Stabilizer bar bracket
541-3 AZ9719510030   After assembly of beams
541-4 AZ9719510010   Beam assembly
541-5 AZ9719510051   Left corner of the bearing plate
541-6 AZ9719510052   Late in the bearing plates
541-7 AZ9719510040   Beam assembly (damper)
541-9 AZ9719510001   Carling left the meeting
541-10 AZ9719510002   Carling right of assembly
541-11 199014510226   Stand
541 AZ9719510000   Car
