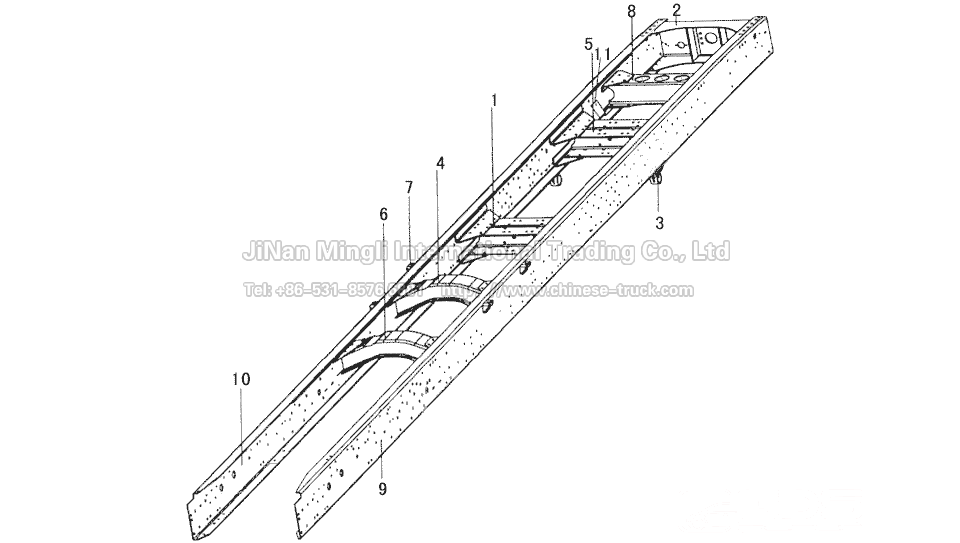

4x2 frame chassis dump

4x2 frame chassis dump

NO. Part number Note Name
543-1 AZ9719510020   Beam assembly
543-2 AZ9632512020   After assembly of beams
543-3 199100510008   Stabilizer bar bracket
543-4 AZ9719510010   Beam assembly
543-5 AZ9719510040   Beam assembly (damper)
543-6 AZ9716510010   Beam assembly
543-7 1780510196   Bracket
543-8 AZ9716510030   Beam assembly
543-9 AZ9716514631   Carling left the meeting
543-9 AZ9716515601   Carling left the meeting
543-10 AZ9716515602   Carling right of assembly
543-10 AZ9716514632   Carling right of assembly
543-11 199014510226   Stand
543 AZ9716515600   Car
543 AZ9716514630   Car
