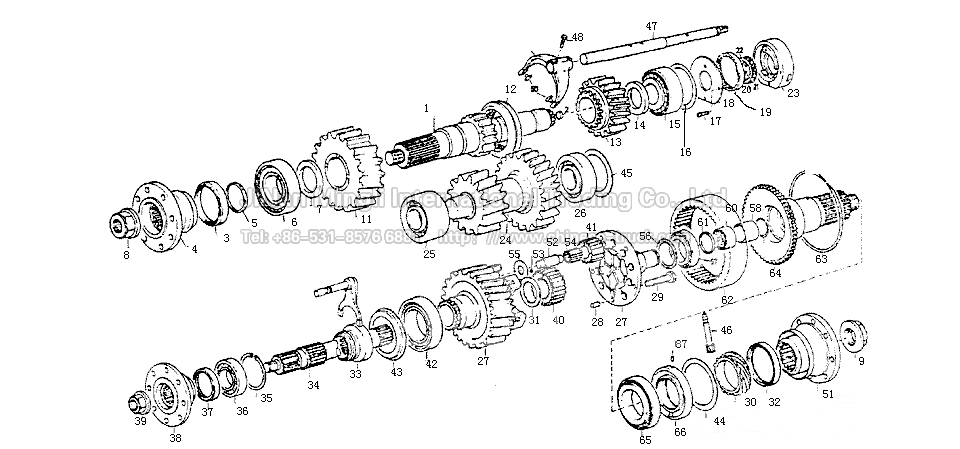

NO. |
Part number |
Note |
Name |
1 |
1-21-225-038 |
|
Capstan |
2 |
190003961903 |
|
|
3 |
190003048775 |
|
Omentum |
4 |
1-21-225-037 |
|
Flange |
4 |
199114250184 |
|
Flange |
5 |
1-99-907-052 |
|
Washer |
6 |
190003326236 |
|
Bearing |
7 |
1-99-907-053 |
|
Washer |
8 |
1-99-905-003 |
|
Nut |
9 |
1-99-905-004 |
|
Nut |
11 |
199014250102 |
|
Gear |
12 |
199014250064 |
|
|
13 |
199114250082 |
|
Gear |
14 |
1880250047 |
|
Nut |
15 |
190003326534 |
|
Bearing 32311GB/T297-94 |
16 |
199114250153 |
|
Korektirovochnaya plate (.154 thick) |
16 |
1188320021 |
|
Korektirovochnaya washer (0.1 thick) |
16 |
1188320022 |
|
Korektirovochnaya shaybya (0,2 thick) |
16 |
1188320023 |
|
Korektirovochnaya washer (0.4 thick) |
17 |
190003862316 |
|
Bolt cylinder head - Q218B0616 |
18 |
1-99-936-002 |
|
|
19 |
199012250101 |
|
Toothing |
20 |
199012250100 |
|
Toothing |
21 |
190003330105 |
|
|
22 |
190003330052 |
|
|
23 |
1-99-936-001 |
|
|
24 |
199014250062 |
|
Intermediate shaft (17/22) |
25 |
199014250055 |
|
Podshpnik |
26 |
190003323432 |
|
Bearing |
27 |
199114250107 |
|
|
