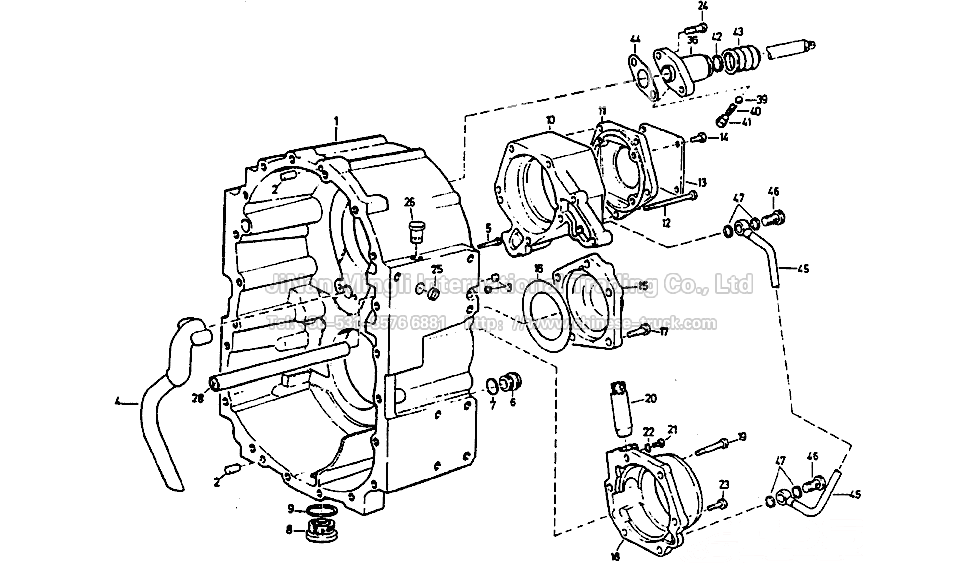

The boat transfer case with differential lock G1200

The boat transfer case with differential lock G1200

NO. Part number Note Name
0 1F7120.700152
1 199114250110   Housing
2 Q5211020   Cylindrical slide
3 190003989481   Cap
4 199114250060   Oil pipeline
5 Q218B0625
6 190003962038
7 190003098026   Sealing washer
8 1586330015   Magnetic drain plug
9 190003098138   Washer - Q72339AL
10 199014250108   Cover drive shaft
11 179200250136   Pump cover
12 Q150B10100
13 1-99-916-002
14 Q150B1216   Korektirovochnaya gasket (thickness 0,1)
15 199014250126   Compactor
16 1680M250031
16 1680M250030
16 Q150B1030   Sensor speedometer
17 Q150B1035
18 199114250043   Sensor speedometer
19 Q150B1055
20 199114250112   Sensor speedometer
21 13809220073
22 Q40308   Cushion
23 Q150B1055
24 Q150B1055
25 190003961903   Cap
26 199000410120
28 199114250242   Discharge pipe
