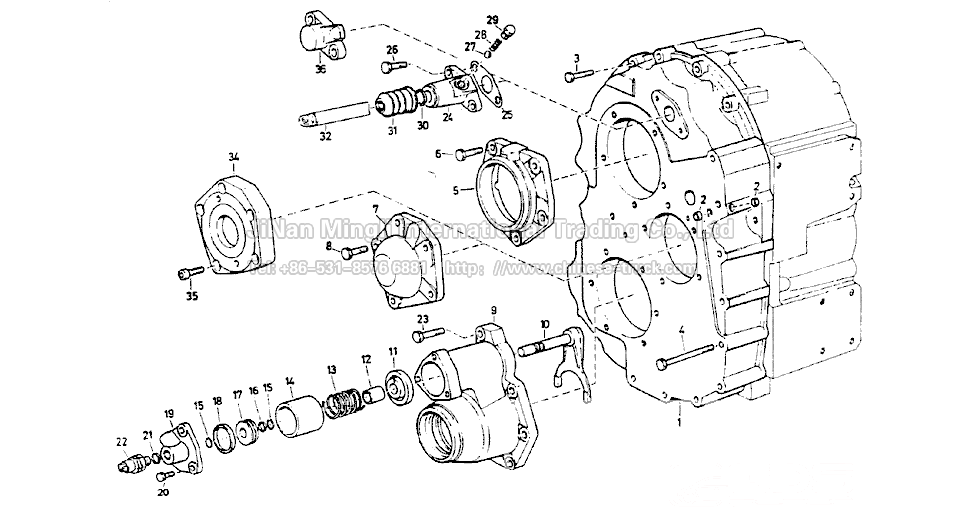

Cover transfer case VG1200 without differential lock
|
NO. |
Part number |
Note |
Name |
|
1 |
199114250059 |
|
Control device |
|
2 |
190003989489 |
|
Cork |
|
3 |
Q150B1240 |
|
|
|
4 |
Q150B12100 |
|
|
|
5 |
199014250097 |
|
Cover |
|
6 |
Q150B1030 |
|
|
|
7 |
199014250125 |
|
Cover |
|
8 |
Q150B1030 |
|
Bolt |
|
9 |
199114250125 |
|
|
|
10 |
199114250176 |
|
Fork |
|
11 |
199014250123 |
|
Cylinder seal |
|
12 |
1-99-965-008 |
|
Intermediate guide |
|
13 |
1-99-976-003 |
|
Spring |
|
14 |
199014250122 |
|
Cylinder |
|
15 |
190003933076 |
|
Axial cuffs |
|
16 |
130A010019 |
|
Ring |
|
17 |
199014250124 |
|
|
|
18 |
1-99-965-008 |
|
0Uplotnitelnaya cuffs |
|
19 |
199014250136 |
|
Cover |
|
20 |
Q150B0816 |
|
|
|
21 |
Q72314TF2 |
|
Sealing washer |
|
22 |
199000710048 |
|
|
|
23 |
Q150B1040Q |
|
|
|
24 |
1880250069 |
|
Flange |
|
25 |
1880250080 |
|
Korektirovochnaya washer |
|
26 |
1880250081 |
|
Control device |
|
27 |
190003330183 |
|
Cap |
|
28 |
12700240011 |
|
|
|
29 |
12700240049 |
|
|
|
30 |
1680250092 |
|
|
