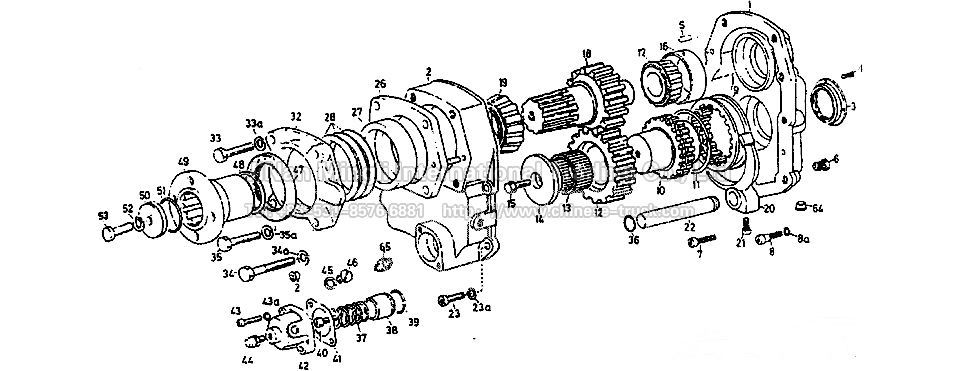

NO. | Part number | Note | Name |
0 | QH50 | ||
1 | 1-21-729-090 | Housing | |
2 | 1-21-729-105 | Housing | |
3 | 1-21-729-092 | ||
4 | -21-729-093 | Screw | |
5 | -21-729-003 | Finger | |
6 | -21-729-21 | Back nut | |
7 | 1-21-729-059 | ||
8 | 21-729-101 | Back nut | |
8a | 1-21-729-091 | Circlip | |
9 | QH50-4211302 | ||
10 | QH50-4211105 | A shaft with an axial hole | |
11 | QH50-4211111 | Circlip | |
12 | QH50-4211106 | A top gear | |
13 | K505517 | Needle bearing | |
14 | QH50-4211104 | ||
15 | 1-21-729-100 | Screw | |
16/17 | 32205 | Tapered roller bearings | |
18 | QH50-4211201 | ||
19 | 30208 | Tapered roller bearings | |
20 | QH50-4211301 | Fork | |
21 | QH50-4211312 | Setscrew | |
22 | QH50-4211305 | Shaft | |
23 | -21-729-084 | ||
23a | 1-21-729-106 | Circlip | |
25 | -21-729-021 | ||
26 | 1-21-729-124 | Transition cover | |
27 | 1-21-729-111 | The sending outer ring | |
28 | QH50-4211203 | Compactor | |
32 | -21-729-125 | Cover bearing housing |
