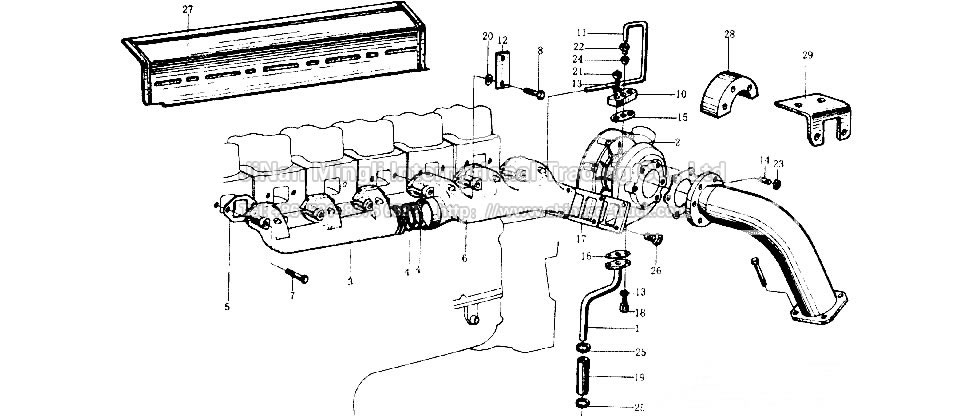

Exhaust manifold

Exhaust manifold

NO. Note Part number Name 69 47 62 87
1   VG2600110361 Oil pipeline 1 1 1 1
2   VG1540110006 Turbocharger (under the collar)
2   VG1560118227 Turbokompresor 1 1 1 1
3   VG2600111137 Intake manifold 1 1 1 1
4   VG260110162 Piston ring 4 4 4 4
5   VG1560110111 Gasket 6 6 6 6
6   VG2601100855 Exhaust Manifold 1 1 1 1
7   VG1560110104 Screw 11 11 11 11
8   VG1560110105 Screw 1 1 1 1
10   VG1560110152 Connector plate 1 1 1 1
11   VG1560070001 Tube 1 1 1 1
13   VG188250083 Circlip 4 4 4 4
14   VG1560110187 Pin thread 6 6 6 6
15   VG609E110050 Connector plate 1 1 1 1
16   VG260110048 Connector plate 1 1 1 1
17   VG1560110210 Connector plate 1 1 1 1
18   VG1460070014 Bolt 2 2 2 2
19   VG2600070071 Hose 1 1 1 1
20   VG609070067 Flat washer 1 1 1 1
21   90003862428 Bolt 2 2 2 2
22   90003559513 Ring 2 2 2 2
23   90003888470 Mobile lock nut 6 6 6 6
24   90003559563 Ring 2 2 2 2
25   90003989340 Clamp 2 2 2 2
26   VG1560440241 Bolt 4 4 4 4
27   VG2600110856 Surface insulation 1 1 1 1
27.1   VG2600110857 Surface insulation 1 1 1 1
28   VG2600110759 Surface insulation 1 1 1 1
